Floodlight IP67 Spot It
SPOT IT M 38 DEG 830/840 BLACK
HIDE-A-LITE
With registration you can access the Würth Elektro online shop selection.
Compact phase dimmable floodlight with modern LED technology and a lean, stylish design. Adjust the amount of light as needed. Let the amount of light grow in step with your garden. Illuminate trees, bushes, patios and facades, creating attractive effects. The black model gives a modern impression. IP67 finish with luminaire housing in corrosion-treated cast aluminium with durable powder coating to cope with the challenges of the Nordic climate. Selectable colour temperature via DIP-Switch ColourTemp. Installed with bracket or accompanying ground spike. Comes complete with integrated dimmable driver and 2m rubber cable. Dimmable with the most common dimmers on the market.
Datasheets(X)
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | Yes |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Rotating and swivelling |
With movement sensor | No |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | None |
Housing material | Aluminium |
Surface protection | Lacquered |
Housing colour | Black |
Material cover | Glass transparent |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | No |
Dimming phase cut-off | Yes |
Dimming phase cut-on | No |
No dim function | No |
Reflector | High-gloss |
Light distributor | Reflector |
Light sharing | Symmetric |
Beam angle | Medium beam 21-40° |
Light outlet | Direct |
Rated life time L70/B50 at 25 °C | 50000 h |
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 78 % |
Constant light output (CLO) | No |
Degree of protection (IP) | IP67 |
Impact strength | IK10 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Max. system power | 15 W |
Colour of light | White |
Colour temperature | 3000-4000 K |
Colour rendering index CRI | 80-89 |
Luminous flux | 1300-1400 lm |
Rated luminous flux according to IEC 62722-2-1 | 1300 lm |
Luminous intensity | 2620 cd |
Power factor | 0.9 |
Flickering value Pst LM | 0.046 |
Colour of light adjustable | Positions |
Luminous flux adjustable | Continuously variable |
Beam angle adjustable | No |

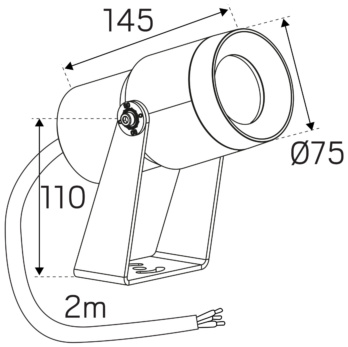

Height/depth | 110 mm |
Length | 145 mm |
Outer diameter | 75 mm |
Type of wiring | Ending |
Number of poles | 3 |
Conductor cross section | 1 mm² |
Connectable conductor cross section | 1-1 mm² |
Connection type | Push-in clamp |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 80 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 80 |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Covering of the luminaire with thermally insulating material possible | No |
Colour consistency (McAdam ellipse) | SDCM3 |
E-number Finland | 4528191 |
Brand | HIDE-A-LITE |
