Office luminaire twenty3 G4
2350 G4 1500 36W 6000LM 3/4K
NYLUND
With registration you can access the Würth Elektro online shop selection.
The surface-mounted office luminaire 1500x300 with the possibility to select luminous flux (60/40/ML) 4000 lm or 6000 lm and colour temperature (8MC) 3000K or 4000K. With UGR value less than 19, that can be turned on/off. Easy and quick to install. It produces a pleasant light effect due to uniform illumination, suitable for VDU workstations (UGR <19).
Datasheets(X)
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for built-in mounting | No |
Suitable for surface mounting | Yes |
Suitable for light line configuration | No |
Suitable for workplace according to EN 12464-1 | Yes |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Aluminium |
Surface protection housing | Powder coating |
Housing colour | White |
Material cover | Other |
Type of grid | None |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | Electronic transformer |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | Yes |
Light distributor | Other |
Light sharing | Symmetric |
Colour consistency (McAdam ellipse) | SDCM4 |
Light outlet | Direct |
Rated life time L70/B50 at 25 °C | 50000 h |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 23 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 39 |
Degree of protection (IP) | IP20 |
Impact strength | IK02 |
Protection class | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
Rated ambient temperature according to IEC 62722-2-1 | 25-25 °C |
Suitable for emergency lighting | No |
Emergency power supply integrated | No |
With movement sensor | No |
With light sensor | No |
Covering of the luminaire with thermally insulating material possible | Yes |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Colour of light | White |
Colour temperature | 3000-4000 K |
Flickering value Pst LM | 0.3 |
Colour rendering index CRI | 80-89 |
Stroboscope effect value SVM | 0.3 |
Constant light output (CLO) | No |

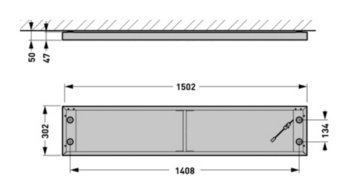

Width | 302 mm |
Height/depth | 50 mm |
Length | 1502 mm |
Number of poles | 3 |
Conductor cross section | 1.5 mm² |
Connection type | Push-in clamp |
Total harmonic distortion | 14 |
Photobiological safety according to EN 62471 | RG0 |
Colour of light adjustable | Positions |
Luminous flux adjustable | Positions |
Beam angle adjustable | No |
Operation by Bluetooth | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
