Plug connector male with cable clamp Ensto
3-POLE COUPLER NCC31S.P
ENSTO
With registration you can access the Würth Elektro online shop selection.
Male spring clamps with cable clamps. For single and few-strand conductors.
Datasheets(X)
Rated voltage | 250 V |
Rated current | 20 A |
Number of poles | 3 |
Degree of protection (IP) | IP20 |
Connection type | Screw connection |
Model | Plug |
Cable diameter | 5.5-11.5 mm |
Connection cross section (fine-strand) | 0.75-4 mm² |
Connection cross section (solid-core) | 0.75-4 mm² |
Number of connections per pole | 1 |
Mechanical coding | Yes |
Colour coding/contact insert | Black |
Type of locking | Integrated in plug-in connector |
With strain relief | Yes |
Max. continuous temperature resistance contact part | 70 °C |
Max. continuous temperature resistance strain relief | 70 °C |
Housing material | Polyamide (PA) |
Halogen free | Yes |
Contact material | CuZn |
Surface treatment contacts | Silver-plated |
Pollution degree | 2 |
Rated surge voltage | 4 kV |

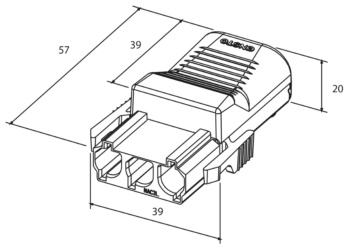

Length | 57 mm |
Height | 20 mm |
Width | 39 mm |
E-number Finland | 1934845 |
Brand | ENSTO |
