Presence detector BasicLINE
BASICLINE HALLWAY 6818U
ABB
With registration you can access the Würth Elektro online shop selection.

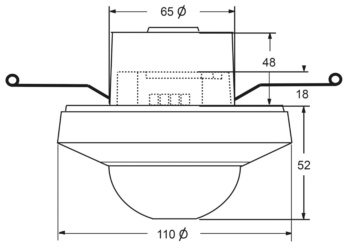

Universal use presence detector for indoor spaces. Detection area 360º Ø 7 m when device installed at 2.5 m height. Lighting level adjustment 10–2,000 lux, switch-off delay 5 s – 30 min, and installation height 2–4 metres, IP40. Closing press buttons can be used as secondary controls. Flush-mount in suspended ceiling with spring clamps or in apparatus/junction box, in which case springs must be removed.
Datasheets(X)
With DALI interface | No |
Constant light control | No |
HVAC-control | No |
Forced switch off | No |
Animal zone | No |
Creep-under protection | Yes |
Networkable | No |
Optimum mounting height | 2.5 m |
Staircase light controller | Yes |
Bridging switch | No |
Diameter reach on floor | 30 m |
Suitable for wireless transmission | No |
Remote operation | Yes |
With remote control | No |
Response value sensitivity adjustable | No |
Response value luminosity adjustable | Yes |
With signal unit | No |
Teach-function for response value luminosity | Yes |
Dim function with dimmer basic element | No |
Mounting method | Built-in |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Surface protection | Untreated |
Surface finishing | Matt |
Colour | White |
RAL-number (similar) | 9010 |
Degree of protection (IP) | IP40 |
Frequency | 50-60 Hz |
Nominal voltage | 230 V |
Min. switch-on time | 10 s |
Max. duty cycle | 30 min |
Detection angle horizontal | 30-360 ° |
Response value luminosity | 10-2000 lx |
Max. switching power | 2000 W |
Suitable for C-load | No |
Temperature | -20-45 °C |
Max. starting current | 80 A |
Substation input | Yes |
With alarm function | No |
E-number Finland | 2619333 |
Brand | ABB |
