Junction box 221 series WAGO

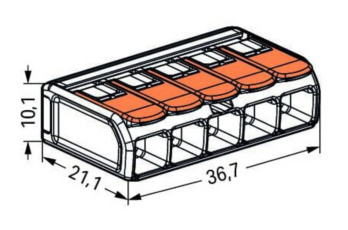

BOX CONNECTOR 5-POL 221-615 WAGO
WAGO
With registration you can access the Würth Elektro online shop selection.
WAGO 221 series junction boxes offer electricians a quick, easy, and safe way to connect rigid, multistrand, or fine-strand conductors without tools. The new 6 mm2 model accepts all conductor types 0.5–6 mm2 (20–10 AWG) in cross-sectional area. The new DIN track adapter accepts all 6 mm2 connectors (2, 3, or 5 poles) and also makes the installation fixed and approved.
Datasheets(X)
Number of clamp positions | 5 |
Nominal cross section | 0.5-6 mm² |
With operation lever | Yes |
Colour | Colourless |
Nominal voltage | 450 V |
Nominal current | 41 A |
Suitable for solid conductors | Yes |
Suitable for flexible conductors | Yes |
Suitable for multi-wire conductors | Yes |
AWG-range | 10-20 |
E-number Finland | 1975265 |
Brand | WAGO |
