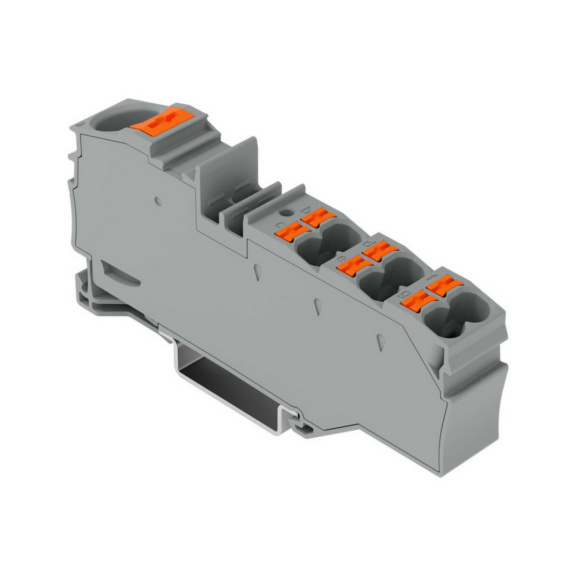

BRANCH CONNECTOR GY 2216-8031
WAGO
Art.-no. WS1957231
EAN 4066966661545
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Connectable conductor cross section fine-strand without cable end sleeve | 0.5-25 mm² |
Connectable conductor cross section fine-strand with cable end sleeve | 0.5-16 mm² |
Connectable conductor cross section solid-core | 0.5-16 mm² |
Connectable conductor cross section multi-wired | 0.5-6 mm² |
Rated current In | 76 A |
Rated voltage | 800 V |
Type of electrical connection 1 | Spring clamp connection |
Type of electrical connection 2 | Spring clamp connection |
Number of levels | 1 |
Number of clamp positions per level | 7 |
Mounting method | DIN rail (top hat rail) 35 mm |
Material insulation body | Thermoplastic |
Operating temperature | -35-85 °C |

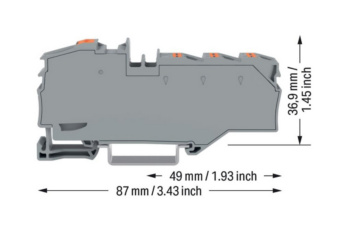

Width | 12.8 mm |
Height | 43.5 mm |
Depth | 87 mm |
Colour | Grey |
E-number Finland | 1957231 |
Brand | WAGO |
