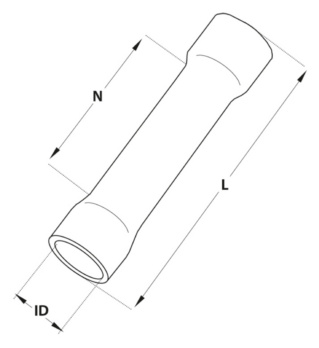

BUTT CONNECTOR INSULATED A 1525 SK
Art.-no. WT3600208
EAN 6438548117579
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
Product information
Datasheets(X)
 | |
Nominal cross section | 0.5-1.65 mm² |
Model | UL model |
Sleeve form | Short |
Suitable for stranded conductors | Yes |
Suitable for fine strand conductors | Yes |
Suitable for high temperatures (to 650 °C) | No |
Suitable for insulated varnish | No |
Suitable for round conductors | Yes |
Suitable for flat conductors | No |
Material | Copper |
Surface protection | Tinned |
Insulation | Polyvinyl chloride (PVC) |
Colour insulation | Red |
Voltage level | Up to 600 V |
For pull protected connections | No |
Oil stop/centre bar | No |
