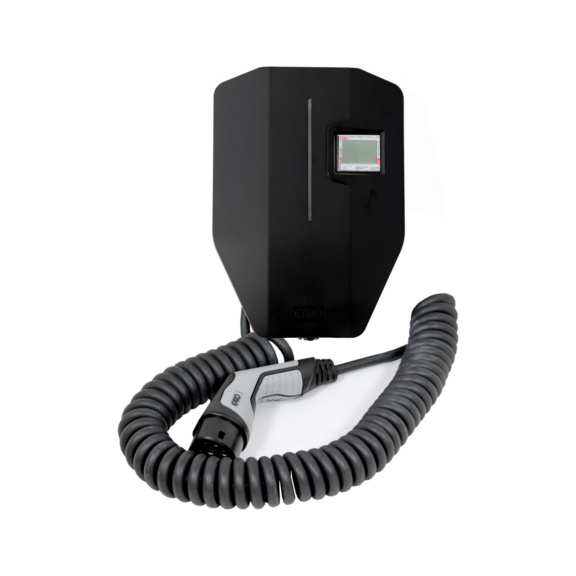

Charging station GARO Entity Pro
CHARGING STATION ENTITY PRO 14 SVGI 5K
Art.-no. WS3501756
EAN 7331185214283
With registration you can access the Würth Elektro online shop selection.
Entity Pro is an expanded version of the Entity series, designed specifically for the needs of apartment complexes, companies, semi-public and public spaces, and single-family homes. This efficient and flexible solution allows you to install up to four charging points on one stand. The charging station has built-in energy meter or visible MID-approved energy meter is also available. All models have a 400V output and type A residual current device as well as DC leakage protection. The charging station includes an installation bracket, a charger unit and a front panel. Built-in 4G SIM card slot, Ethernet and WiFi mesh connection.
- Three-phase charging station (1-phase option), stepless power adjustment 1.4 - 22kW
- Outlet or fixed cable
- Changeable handedness
- Built-in RFID identification
- Built-in energy measurement
- Available with visible MID approved meter
- Load management (4 levels), also possible wirelessly
- Load management determines the phases used for charging and, if necessary, scales charging between phases 1-3 depending on the power availability
- Built-in phase compensation
- Built-in electronic and mechanical AC/DC fault detection
- All-pole mechanical circuit breaker
- ISO 15118 hardware support
- OCPP charging station, connectable to the free GARO Connect cloud service or charging operator service
- LAN, Wi-Fi, 4G, GARO-Mesh
- Up to four 22 kW charging points on one stand
- Device warranty five years
- Pörssisähkö control (in the owner role)
Datasheets(X)
 | |
E-number Finland | 3501756 |
