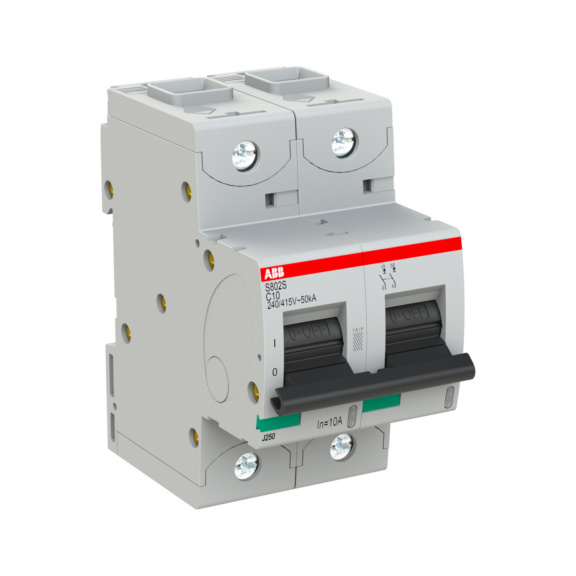

Miniature circuit breaker S800

Name: Miniature circuit breaker S800
Brand: ABB
SKU: 3735212122

CIRCUIT BREAK 2-PLE C10A 50KA S802S-C10
ABB

Art.-no. 3735212122

EAN 7612271200602

All versions

Similar products

Miniature circuit breaker S800

Art.-no. 3735212122

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

S800 miniature circuit breaker for up to 50 kA breaking capacity – compact, high-performance and expandable for demanding applications.

ABB S800 series miniature circuit breakers are designed for demanding applications where very high breaking capacity and reliable protection are required. The compact solution offers up to 50 kA breaking capacity and is suitable for nominal currents of 6–125 A. Suitable for real estate, transportation solutions and renewable energy projects, among other things. Versatile accessories enable control, monitoring and remote operation.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Built-in depth	88.5 mm
Release characteristic	C
Number of poles (total)	2
Number of protected poles	2
Rated current	10 A
Rated voltage	690 V
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	25 kA
Voltage type	AC/DC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	25 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	50 kA
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	50 kA
Frequency	50-50 Hz
Current limiting class	3
Concurrently switching neutral conductor	No
Overvoltage category	3
Pollution degree	2
Additional equipment possible	Yes
Width in number of modular spacings	3
Degree of protection (IP)	IP20
E-number Finland	3212122
Brand	ABB
