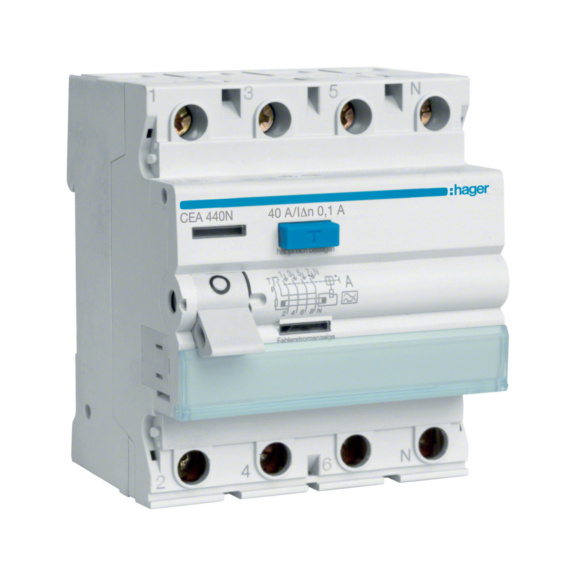

CIRCUIT BREAKER 4-NAP A 4X40A CEA440N
HAGER
Art.-no. WS3260897
EAN 3250611616924
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Datasheets(X)
 | |
Number of poles | 4 |
Rated voltage | 400 V |
Rated current | 40 A |
Rated fault current | 0.1 A |
Rated insulation voltage Ui | 500 V |
Mounting method | DIN rail |
Leakage current type | A |
Selective protection | No |
Short-time delayed tripping | No |
Short-circuit breaking capacity (Icw) | 1.5 kA |
Surge current capacity | 3 kA |
Voltage type | AC |
With interlocking device | No |
Frequency | 50 Hz |
Additional equipment possible | Yes |
Degree of protection (IP) | IP20 |
Width in number of modular spacings | 4 |
Built-in depth | 70 mm |
Ambient temperature during operating | -25-40 °C |
Pollution degree | 2 |
Explosion-proof | No |
E-number Finland | 3260897 |
Brand | HAGER |
