Connectable conductor cross section fine-strand without cable end sleeve

6-70 mm²

Connectable conductor cross section fine-strand with cable end sleeve

6-70 mm²

Connectable conductor cross section solid-core

6-95 mm²

Connectable conductor cross section multi-wired

6-95 mm²

Rated current In

490 A

Rated voltage

1000 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-25-80 °C

Inflammability class of insulation material according to with UL94

V0

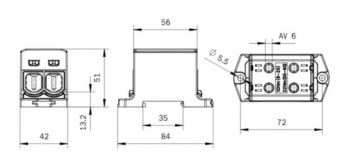

Width

42 mm

Height

51 mm

Depth

84 mm

Explosion-tested version 'Ex e'

No

Closing plate required

No

Colour

Green/yellow

Internally connected stages

No

E-number Finland

1914117

Brand

OUNEVA
