WAGO

Junction box 221 Atex Ex WAGO

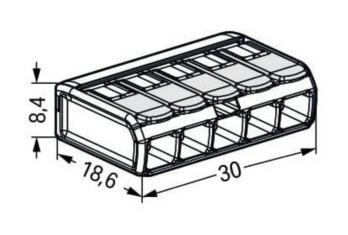

CONNECTOR 5-POL ATEX EX 2 G/1,2 221-485
WAGO

Art.-no. WS1976045
EAN 4055143837330

-
Junction box 221 Atex Ex WAGO

Art.-no. WS1976045

-
Quantity
PU
x 25

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

LEVER WAGO EX version


– Compatible with ATEx Ex II 2G /zones 1, 2


WAGO 221 series junction boxes offer installers a quick, easy, and safe way to install a rigid, multi-thread, or fine-thread conductor without tools; now also in explosive ATEx zones 1 and 2. The new WAGO EX Levers accept all conductor types: fine-thread cross-sectional area 0.14–4 mm2 and multi-thread and single-thread cross-sectional area 0.2–4 mm2 (24-12 AWG). For a fixed, EX requirement compliant installation, DIN rail adapters must be used.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Number of clamp positions

5

Nominal cross section

0.2-4 mm²

Cable diameter

0.2-4 mm

With operation lever

Yes

Nominal voltage

440 V

Nominal current

32 A

Suitable for solid conductors

Yes

Suitable for flexible conductors

Yes

Suitable for multi-wire conductors

Yes

Conductor cross section flexible (fine-strand) with cable end sleeve

0.14-4 mm²

Conductor cross section solid (solid, stranded)

0.2-4 mm²

AWG-range

12-24

E-number Finland

1976045

Brand

WAGO

Additional accessory:

Product
Description
Quantity
PU
Price
/PU
Junction box 221 Atex Ex WAGO

CONNECTOR 2-POL ATEX EX 2 G/1,2 221-482

WAGO
x 100
Junction box 221 Atex Ex WAGO

CONNECTOR 3-POL ATEX EX 2 G/1,2 221-483

WAGO
x 50
DIN adapter EX 221 WAGO

DIN-ADAPTER EX 221-48 SERIE 221-501

WAGO
x 10
