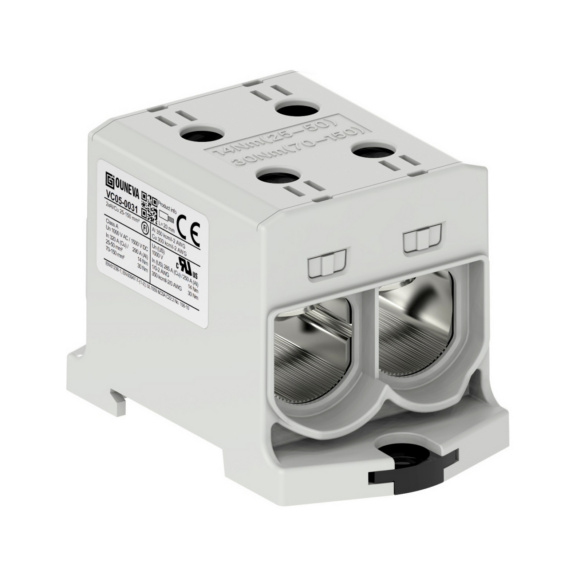

CONNECTOR OTL 2XAL/CU 25-150MM2 GY
OUNEVA
Art.-no. WS1914127
EAN 6410019141276
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Connectable conductor cross section fine-strand without cable end sleeve | 25-120 mm² |
Connectable conductor cross section fine-strand with cable end sleeve | 25-120 mm² |
Connectable conductor cross section solid-core | 25-150 mm² |
Connectable conductor cross section multi-wired | 25-150 mm² |
Rated current In | 640 A |
Rated voltage | 1000 V |
Type of electrical connection 1 | Screw connection |
Type of electrical connection 2 | Screw connection |
Number of levels | 1 |
Number of clamp positions per level | 2 |
Mounting method | DIN rail (top hat rail) 35 mm |
Material insulation body | Thermoplastic |
Operating temperature | -25-80 °C |
Width | 51 mm |
Height | 54 mm |
Depth | 84 mm |
Explosion-tested version 'Ex e' | No |
Closing plate required | No |
Colour | Grey |
Internally connected stages | No |
E-number Finland | 1914127 |
Brand | OUNEVA |
