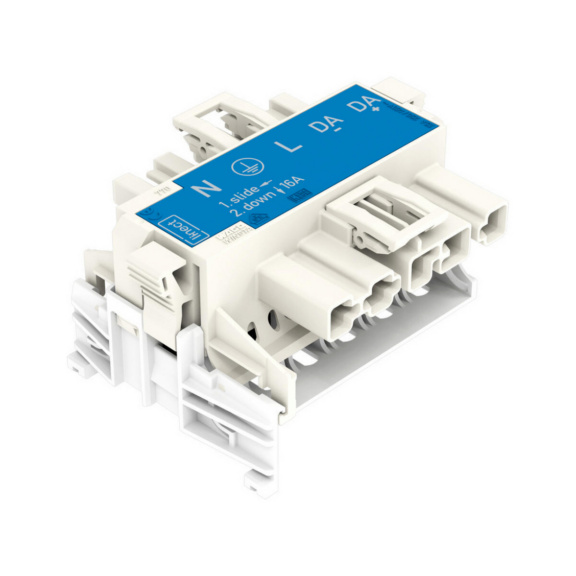

CONNECTOR T-JUNCTION DALI 5P 770-7105
WAGO
Art.-no. WS1922199
EAN 4050821000402
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Rated voltage | 400 V |
Rated current | 25 A |
Number of poles | 5 |
Degree of protection (IP) | IP20 |
Mechanical coding | No |
Colour coding/contact insert | White |
Type of locking | Integrated in plug-in connector |
Halogen free | Yes |
Max. continuous temperature resistance contact part | 85 °C |
Max. continuous temperature resistance strain relief | 105 °C |
Housing material | Polyamide (PA) |
Contact material | CuSn |
Surface treatment contacts | Other |
Pollution degree | 3 |
Continuity resistance | 3 mOhm |
Rated surge voltage | 4 kV |

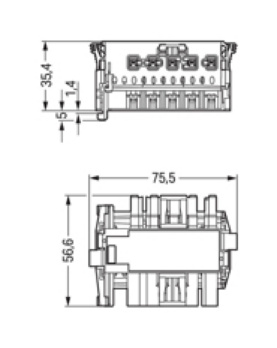

Length | 56.6 mm |
Height | 35.5 mm |
Width | 75.5 mm |
E-number Finland | 1922199 |
Brand | WAGO |
