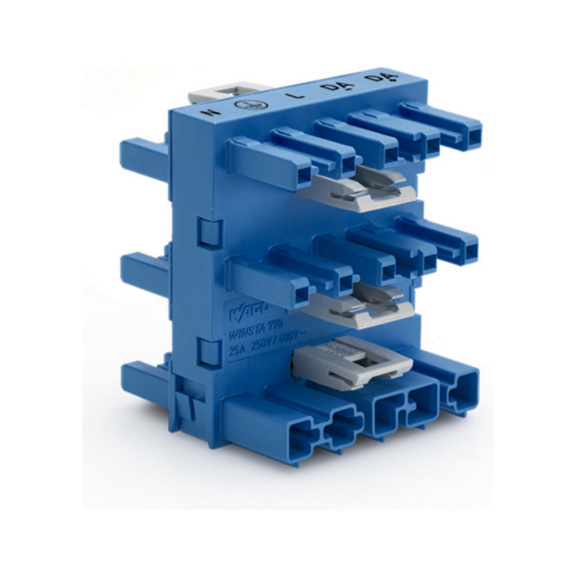

CONNECTOR WINSTA DALI 5P BL 770-1947
WAGO
Art.-no. WS1927343
EAN 4055143706940
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Rated voltage | 400 V |
Rated current | 25 A |
Rated current to luminaire | 25 A |
Number of poles | 5 |
Degree of protection (IP) | IP20 |
Number of inputs | 5 |
Number of outputs | 25 |
Pole codification | L, N, PE, D1, D2 |
Mechanical coding | Yes |
Colour coding/contact insert | Blue |
Type of locking | Integrated in plug-in connector |
Halogen free | Yes |
Max. continuous temperature resistance contact part | 85 °C |
Max. continuous temperature resistance strain relief | 105 °C |
Housing material | Polyamide (PA) |
Contact material | Other |
Surface treatment contacts | Other |
Pollution degree | 3 |
Continuity resistance | 0.5 mOhm |
Rated surge voltage | 6 kV |

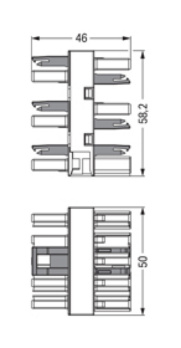

Length | 46 mm |
Height | 58 mm |
Width | 50 mm |
Type of distributor | Other |
Type of integrated switching | None |
Mounting possibility | No |
E-number Finland | 1927343 |
Brand | WAGO |
