Brand: WAGO
SKU: WS1923339

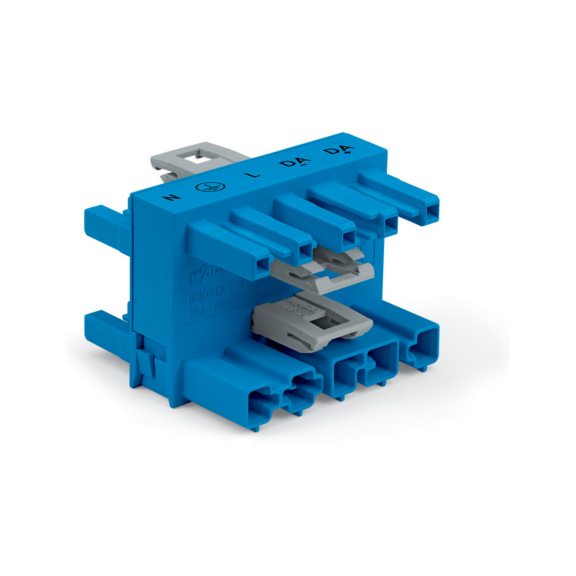

CONNECTOR WINSTA DALI 770-618 WAGO
WAGO

Art.-no. WS1923339

EAN 4050821394778

All versions

Similar products

Art.-no. WS1923339

Quantity

x 25

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Rated voltage	400 V
Rated current	25 A
Rated current to luminaire	25 A
Number of poles	5
Degree of protection (IP)	IP20
Number of inputs	5
Number of outputs	15
Mechanical coding	Yes
Colour coding/contact insert	Blue
Colour of the separate adapter piece	Without adapter piece
Type of locking	Integrated in plug-in connector
Halogen free	Yes
Max. continuous temperature resistance contact part	85 °C
Max. continuous temperature resistance strain relief	105 °C
Housing material	Polyamide (PA)
Contact material	Other
Surface treatment contacts	Other
Pollution degree	3
Continuity resistance	0.5 mOhm
Rated surge voltage	6 kV

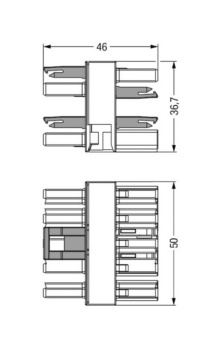

Length	46 mm
Height	36.7 mm
Width	50 mm
Type of distributor	Other
Type of integrated switching	None
Mounting possibility	No
E-number Finland	1923339
Brand	WAGO
