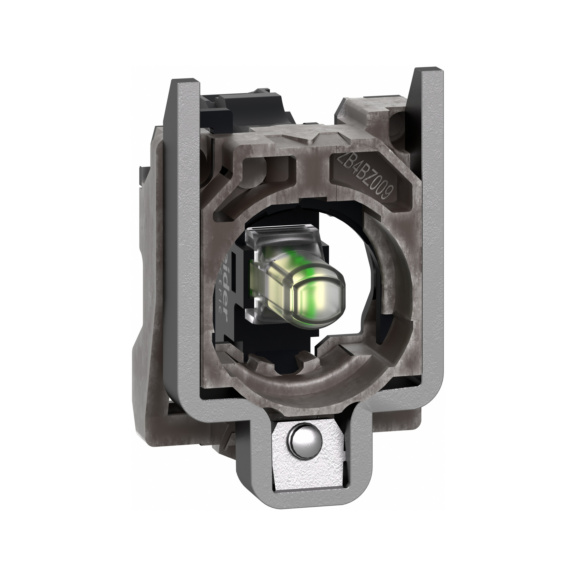

Frame/light module combination Harmony XB4
CONTACT BLOCK 24VAC/DC ZB4BV18B1 HARMONY
SCHNEIDER ELECTRIC
Art.-no. WS2321505
EAN 3389110215038
With registration you can access the Würth Elektro online shop selection.
- Ingress protection rating up to IP66, IP67, IP69 and IP69K, type 4X
- Operating temperature -40…+70 °C and impact resistance up to IK06
- High vibration and shock resistance, vibration-resistant terminal screws
- Multiple connection options: screw, Faston, spring, plug-in or PCB
- Wide range of contact blocks for low, constant and high currents
- Wide approvals: IEC, UL, CSA, CCC, EAC, JIS, as well as CE marking and marine approvals
Applications:
Suitable for panels and machines that require extensive versatility, a high level of protection and reliable operation in demanding environments.
Datasheets(X)
 | |
Transformer integrated | No |
With integrated voltage decreasing resistor | No |
With light source | Yes |
With integrated diode | Yes |
Lamp holder | Other |
Rated voltage Ue at AC 50 Hz | 24-24 V |
Rated voltage Ue at AC 60 Hz | 24-24 V |
Rated voltage Ue at DC | 24-24 V |
Voltage type for actuating | AC/DC |
Lamp type | LED |
Connection type auxiliary circuit | Screw connection |
Colour light source | White |
Type of fastening | Front fastening |
E-number Finland | 2321505 |
Brand | SCHNEIDER ELECTRIC |
