ABB

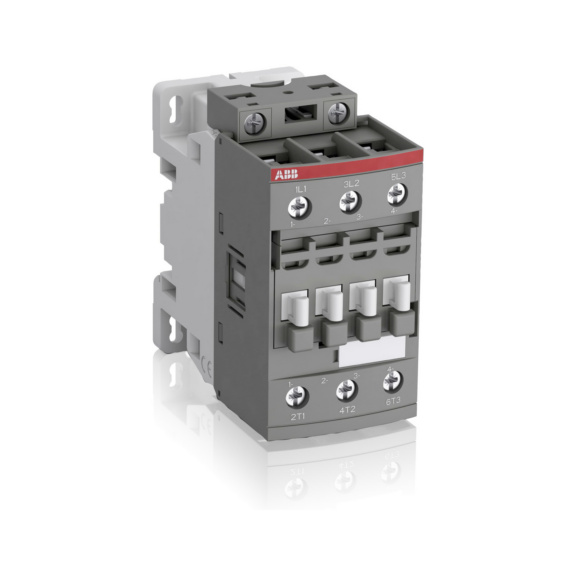

Contactor AF30

CONTACTOR 15kW AF30Z-30-00-21
ABB

Art.-no. WS3706294
EAN 3471523114418

-
Contactor AF30

Art.-no. WS3706294

-
Quantity
PU
x 1

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

3-pole AF contactors


New AF contactors are equipped with innovative AF technology. Electronic coil control offers many benefits over traditional alternatives. Combined with ABB’s broad product portfolio, building an optimal configuration is easy.



Benefits


  • The relatively narrow list of products enables the optimisation of logistics and makes product management easier

  • The products are universal: the 100–250 V AC/DC-controlled coil is compatible with all standard mains voltages

  • Energy consumption reduced by 80% as compared to traditional coil control solutions

  • The high control voltage change resilience provided by the AF technology guarantees uninterrupted operation

  • AFz solution connected directly to logic control without supplementary relays


Properties


  • Up to 560 kW–400 V AC-3 and 2650 A–690 V AC-1

  • The 4 coil voltage ranges cover 24–500 V AC and 20–500 V DC

  • Screw, spring and ring connectors

  • Internal control circuit interference protection; no interference in the control circuit when the contactor opens

  • Ready-for-use connector and fastener sets enable the easy, quick and reliable assembly of reversing and star-delta starters.

  • Mirror and mechanically connected auxiliary contactors.
Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Rated control supply voltage AC 50 Hz

24-60 V

Rated control supply voltage AC 60 Hz

24-60 V

Rated control supply voltage DC

20-60 V

Voltage type for actuating

AC/DC

Rated operation current Ie at AC-1, 400 V

50 A

Rated operation current Ie at AC-3, 400 V

32 A

Rated operation power at AC-3, 400 V

15 kW

Modular version

No

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

0

Type of electrical connection of main circuit

Screw connection

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

3

E-number Finland

3706294

Brand

ABB

Art.-no.
Cust. Mat. No.

Hazardous Material
