Modular contactor ESC

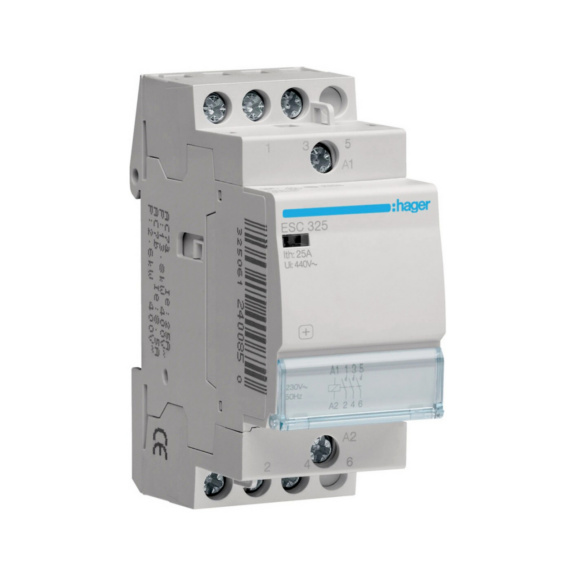

CONTACTOR COIL 3S 25A 230VAC ESC325
UTU
With registration you can access the Würth Elektro online shop selection.
Modular contactor for controlling lighting loads and other general loads. When installing several contactors in parallel, install the heat dissipation insert LZ060 between every other contactor to ensure sufficient air circulation between the products.
Datasheets(X)
Rated operating voltage | 400-400 V |
Rated operation current | 25 A |
Utility category | 7 |
Rated excitation voltage | 230-230 V |
Voltage type (operating voltage) | AC |
Voltage type (excitation voltage) | AC |
Number of contacts as normally open contact | 3 |
Number of contacts as normally closed contact | 0 |
Max. incandescent lamp load | 1900 W |
Max. load fluorescent lamp | 950 VA |
Max. load fluorescent lamp (Duo circuit) | 1990 VA |
Max. load fluorescent lamp (parallel compensated) | 810 VA |
Built-in depth | 60 mm |
Additional equipment possible | Yes |
With day/night function | No |
Hum-free | No |
Degree of protection (IP) | IP2X |
E-number Finland | 3748086 |
Brand | UTU |
