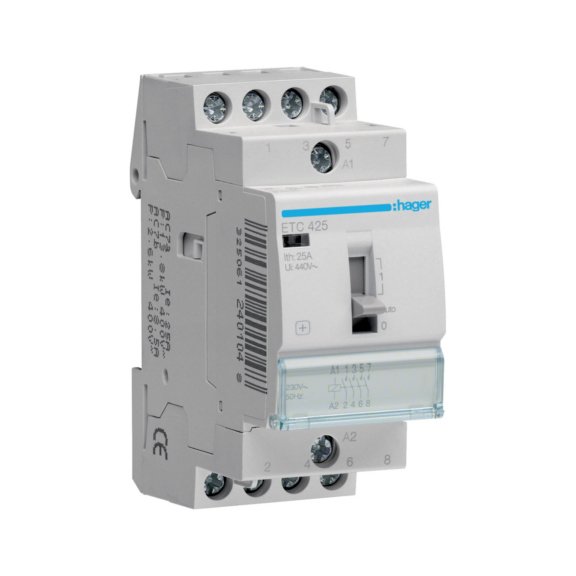

Modular contactor ETC ETC series, noiseless contactors, 2-module width.
CONTACTOR COIL 4S 25A 230VAC ETC425
UTU
Art.-no. WS3748024
EAN 3250612401048
With registration you can access the Würth Elektro online shop selection.
Contactor for controlling the heating resistors of tariff-controlled water heaters and boilers. Noiseless modular contactor with switch. Control with 230 VAC voltage. The manual switch can be used to force the contactor manually on or off. The contactor returns from position 1 to position A when the voltage is connected to the control coil of the contactor the next time. The function prevents the water tank from boiling dry.
Datasheets(X)
Width in number of modular spacings | 2 |
Built-in depth | 64 mm |
Number of contacts as normally open contact | 4 |
Max. incandescent lamp load | 1900 W |
Max. load fluorescent lamp | 950 VA |
Max. load fluorescent lamp (Duo circuit) | 1990 VA |
Max. load fluorescent lamp (parallel compensated) | 810 VA |
E-number Finland | 3748024 |
Brand | UTU |
