Contactor TeSys D

Name: Contactor TeSys D
Brand: SCHNEIDER ELECTRIC
SKU: WS3860089

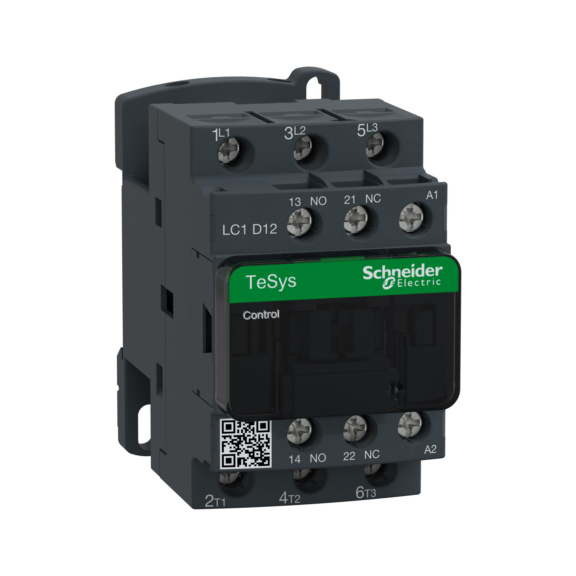

CONTACTOR TESYS 5,5kW 230VAC LC1D12P7
SCHNEIDER ELECTRIC

Art.-no. WS3860089

EAN 3389110349306

All versions

Similar products

Contactor TeSys D

Art.-no. WS3860089

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

TeSys D are not only visually modern but also quick and easy to install. The devices are compact (width 45 mm < 38 A and 55 mm 40–65 A) and they comply with international standards. Contactors sized 40–65 A have been equipped with an innovative patented EverLink technology that ensures a long useful life and maintenance-free (no need to tighten) use. Versatile NC/NO auxiliary connectors available for multiple models.

Ideal model for all applications. Motor control, reversal control, star-delta starting, control of resistive loads, lighting control, control of electric car charging stations, etc.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

Rated control supply voltage AC 50 Hz	230-230 V
Rated control supply voltage AC 60 Hz	230-230 V
Voltage type for actuating	AC
Rated operation current Ie at AC-1, 400 V	25 A
Rated operation current Ie at AC-3, 400 V	12 A
Rated operation power at AC-3, 400 V	5.5 kW
Rated operation current Ie at AC-4, 400 V	7.5 A
Rated operation power at AC-4, 400 V	3 kW
Modular version	No
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
Type of electrical connection of main circuit	Screw connection
Number of normally closed contacts as main contact	0
Number of normally open contacts as main contact	3
E-number Finland	3860089
Brand	SCHNEIDER ELECTRIC
