Type of electric connection

Screw connection

Complete with socket

No

Suitable for DIN rail (top hat rail) mounting

No

Suitable for front mounting

Yes

Pluggable on auxiliary contact block

No

Function delay-on energization

Yes

Function delay on de-energization

Yes

Function floating contact on energization

No

Function floating contact on de-energization

No

Function star-delta

No

Function pulse shaping

No

Function flashing, starting with pause, fixed time

Yes

Function flashing, starting with pulse, fixed time

No

Clock function, starting with pause, variable

No

Clock function, starting with pulse, variable

No

Time range

3-60 s

Remote operation possible

No

Suitable as remote control

No

Rated control supply voltage DC

24-24 V

Voltage type for actuating

DC

Outputs, reversible delayed/undelayed

No

With semiconductor output

Yes

Material of contact insert

Other

Material contact

Other

Material of contact surface

Other

Operating voltage DC

16.8-31.2 V

Voltage type (operating voltage)

DC

Nominal current

0.2 A

Max. starting current

10 A

Degree of protection (IP)

IP65

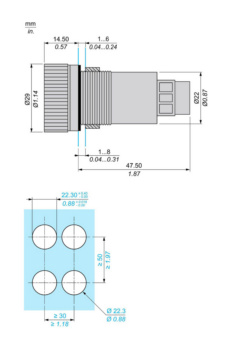

Width

29 mm

Height

62 mm

Depth

29 mm

E-number Finland

2318397

Brand

SCHNEIDER ELECTRIC
