Brand: Würth Elektronik Oy
SKU: WS3202769

CURRENT CIRCUIT BREAKER 2-POL C32 10kA

Art.-no. WS3202769

EAN 8011564290167

All versions

Art.-no. WS3202769

Quantity

x 1

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Number of poles (total)	2
Number of protected poles	2
Rated voltage	110 V
Rated insulation voltage Ui	500 V
Rated impulse withstand voltage Uimp	4 kV
Rated fault current	0.03 A
Leakage current type	AC
Current limiting class	3
Rated short-circuit breaking capacity according to IEC 60947-2	15 kA
Rated short-circuit breaking capacity Icn according to EN 61009-1	10 kA
Surge current capacity	0.25 kA
Voltage type	AC
Frequency	50/60 Hz
Release characteristic	C
Over voltage category	3
Ambient temperature during operating	-40-70 °C
Width in number of modular spacings	2

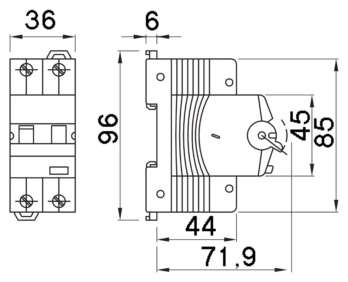

Built-in depth	71.9 mm
Connectable conductor cross section solid-core	35-35 mm²
Connectable conductor cross section multi-wired	35-35 mm²
E-number Finland	3202769
