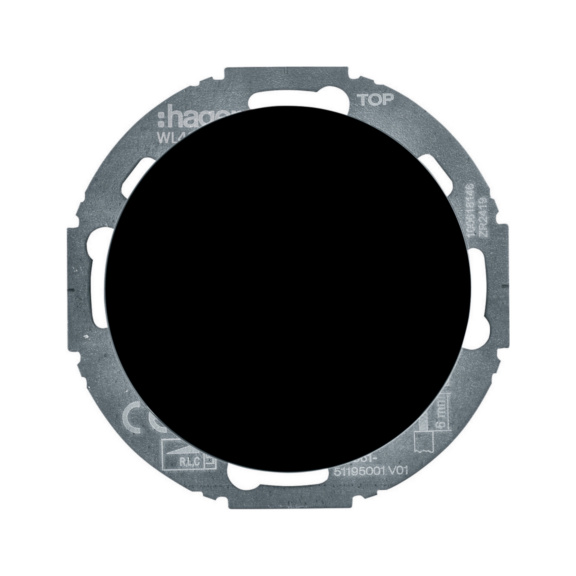

DIMMER 1G 100W LED + COVER 100° BK
HAGER
Art.-no. WS2613697
EAN 3250610089767
With registration you can access the Würth Elektro online shop selection.
24 month warranty
Datasheets(X)
Assembly arrangement | Basic element with central cover plate |
Method of operation | Turn/push button |
App control via Bluetooth | No |
Dimming phase cut-on (leading edge) | Yes |
Dimming phase cut-off (trailing edge) | Yes |
Serial dimmer | No |
Type of load | Universal and LED Retrofit |
Substation input | Yes |
Light value memory | Yes |
Applicable with button | No |
Applicable with movement sensor | No |
Applicable with presence indicator | No |
Applicable with time switch/timer | No |
Applicable with transmission button | No |
Applicable with infrared button | No |
Mounting method | Built-in |
Type of fastening | Mounting with claw |
Material | Other |
Material quality | Other |
Surface protection | Untreated |
Surface finishing | Glossy |
Colour | White |
RAL-number (similar) | 9010 |
Transparent | No |
Suitable for degree of protection (IP) | IP20 |
Nominal voltage | 230-230 V |
Frequency | 50-60 Hz |
Connection type | Screwed terminal |
Core cross section | 0.5-4 mm² |
Device width | 71 mm |
Device height | 71 mm |
Device depth | 45 mm |
Min. depth of built-in installation box | 27 mm |
E-number Finland | 2613697 |
Brand | HAGER |
