Assembly arrangement

Basic element with full cover plate

Method of operation

Turn button

App control via Bluetooth

No

Dimming phase cut-on

No

Dimming phase cut-off

No

Serial dimmer

No

Type of load

Electronic ballast 1-10 V

Substation input

No

Light value memory

No

Applicable with button

No

Applicable with movement sensor

No

Applicable with presence indicator

No

Applicable with time switch/timer

No

Applicable with transmission button

No

Applicable with infrared button

No

Mounting method

Built-in

Type of fastening

Screw mounting

Material

Plastic

Material quality

Thermoplastic

Halogen free

Yes

Surface protection

Untreated

Surface finishing

Matt

Colour

White

RAL-number (similar)

9003

Transparent

No

Suitable for degree of protection (IP)

IP21

Nominal voltage

230-230 V

Frequency

50-50 Hz

Control voltage

1-10 V

Connection type

Screwed terminal

Core cross section

1.5-2.5 mm²

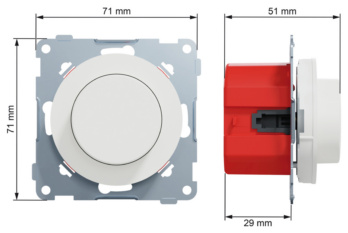

Device width

71 mm

Device height

71 mm

Device depth

47 mm

Min. depth of built-in installation box

29 mm

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

IFTTT support available

No

E-number Finland

2610194

Brand

SCHNEIDER ELECTRIC
