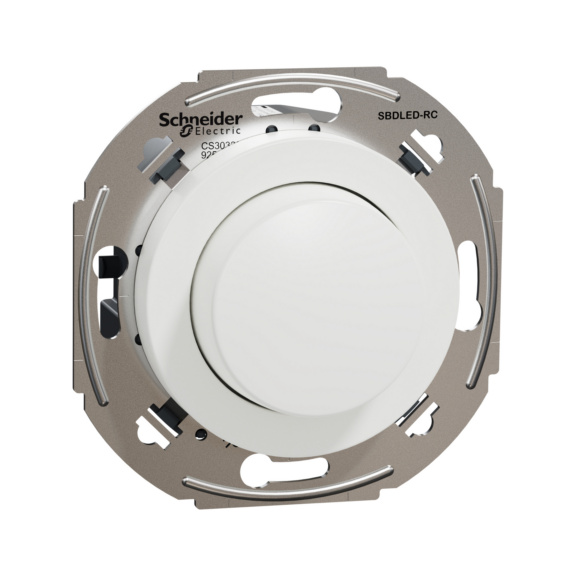

Rotatory LED dimmer 0-370W Renova
DIMMER LED 0-370W RC UPK WT RENOVA
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
The Renova LED dimmer is suitable for most LED lamps, incandescent bulbs and halogens with an electronic control gear.
Particularly low minimum level (0.4ms). Easy installation and minimum level adjustment.
Can be installed with or without neutral - the best adjustment result is obtained by using neutral.
Minimum load 0W (with neutral) and 3W (without neutral), maximum LED load 200W.
Datasheets(X)
Assembly arrangement | Basic element with central cover plate |
Method of operation | Turn/push button |
App control via Bluetooth | No |
Dimming phase cut-on (leading edge) | No |
Dimming phase cut-off (trailing edge) | Yes |
Serial dimmer | No |
Type of load | Capacitive load |
Substation input | Yes |
Light value memory | Yes |
Applicable with button | Yes |
Applicable with movement sensor | No |
Applicable with presence indicator | No |
Applicable with time switch/timer | No |
Applicable with transmission button | No |
Applicable with infrared button | No |
Mounting method | Built-in |
Type of fastening | Mounting with claw and screw |
Material | Plastic |
Material quality | Thermoplastic |
Halogen free | Yes |
Surface protection | Untreated |
Surface finishing | Glossy |
Colour | White |
RAL-number (similar) | 9003 |
Transparent | No |
Suitable for degree of protection (IP) | IP20 |
Impact strength | IK02 |
Nominal voltage | 230-230 V |
Frequency | 50-60 Hz |
Nominal power resistive load | 10-370 W |
Nominal power capacitive load | 10-370 VA |
Max. switching power LED | 200 W |
Connection type | Screwed terminal |
Core cross section | 1.5-2.5 mm² |
Device width | 87 mm |
Device height | 71 mm |
Device depth | 51 mm |
Min. depth of built-in installation box | 29 mm |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
IFTTT support available | No |
E-number Finland | 2622147 |
Brand | SCHNEIDER ELECTRIC |
