Group switchgear Näpsä Smart

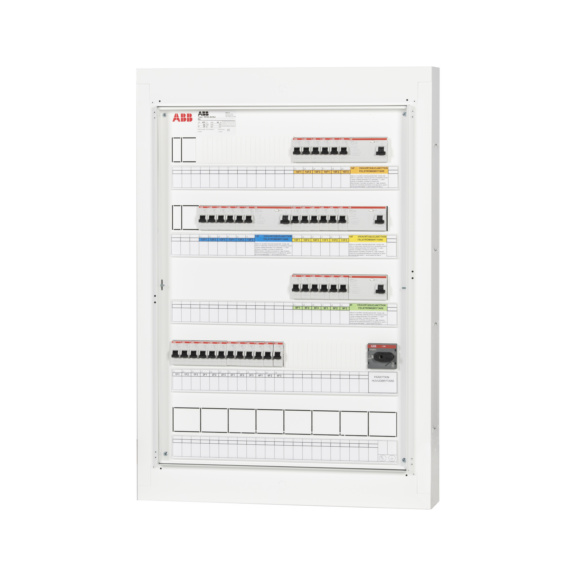

DISTRIBUTION BOARD DATA RK50-4V36J
ABB
Art.-no. WS3310161
EAN 6410033101614
With registration you can access the Würth Elektro online shop selection.
Switchboard embedded/surface installation, IP20, colour shade RAL9016. In all Näpsä switchboards, all outgoing devices are connected to spring-coupling devices, lead protector circuit breakers and N/PE connectors.
Datasheets(X)
Mounting method | Surface mounted/recessed mounted |
Number of phases | 3 |
Protection | Miniature-/earth leakage circuit breaker |
Total number of groups | 36 |
Number of direct groups | 12 |
Number of groups behind earth leakage switch | 24 |
Number of earth leakage switches 30 mA | 4 |
Number of poles main switch | 3 |
Main switch rated current | 63 A |
Cooker group suitable as power current group | No |
With socket outlet | No |
With bell transformer | No |
Overvoltage protection | No |
Housing material | Steel |
Degree of protection (IP) | IP2XC |
Height | 800 mm |
Width | 550 mm |
Width in number of modular spacings | 24 |
Built-in depth | 95-95 mm |
Extension possible | Yes |
With transparent cover | No |
Lockable | No |
E-number Finland | 3310161 |
Brand | ABB |
