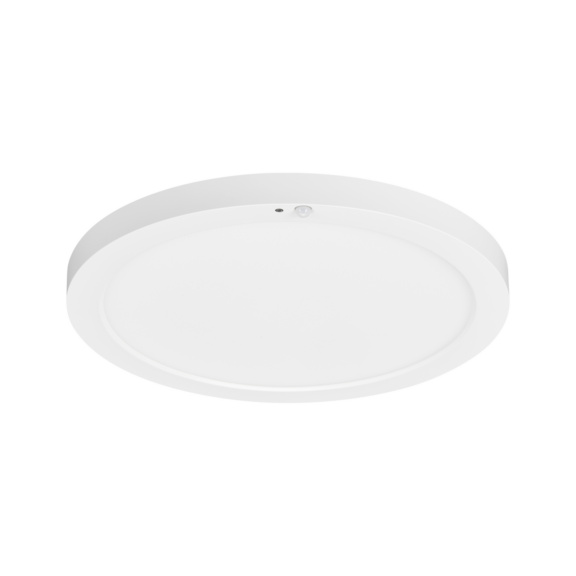

DOWNLIGHT 5IN1 11W/23W 830/840/865 PIR
SYLVANIA
With registration you can access the Würth Elektro online shop selection.
3 Years Warranty
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | Yes |
Suitable for wall mounting | No |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Not adjustable |
With movement sensor | Yes |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Housing material | Plastic |
Surface protection | Untreated |
Housing colour | Other |
Material cover | Plastic, opal |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Light distributor | Diffuser lens/optic/panel |
Light distribution | Symmetric |
Beam angle | > 80° - Extreme wide beam |
Rated lifetime L70/B50 at 25 °C | 90000 h |
Constant light output (CLO) | No |
Impact strength | IK03 |
Protection class according to IEC 61140 | II |
Rated ambient temperature according to IEC 62722-2-1 | 5-40 °C |
Max. system power | 23 W |
Colour temperature | 3000-6500 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Colour of light adjustable | Continuously variable |
Luminous flux adjustable | Positions |
Beam angle adjustable | No |

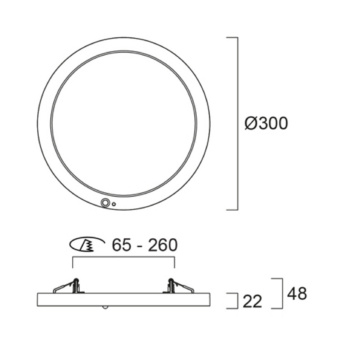

Height/depth | 22 mm |
Outer diameter | 300 mm |
Type of wiring | Loop-through wiring included |
Number of poles | 2 |
Conductor cross section | 1.5 mm² |
Connectable conductor cross section | 0.75-1.5 mm² |
Connection type | Push-in clamp |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 80 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 134 |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Photobiological safety according to EN 62471 | RG0 |
Suitable for workplace according to EN 12464-1 | No |
Covering of the luminaire with thermally insulating material possible | No |
IFTTT support available | No |
Colour consistency (McAdam ellipse) | SDCM6 |
Unified Glare Ratio (UGR) | 28 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4279679 |
Brand | SYLVANIA |
