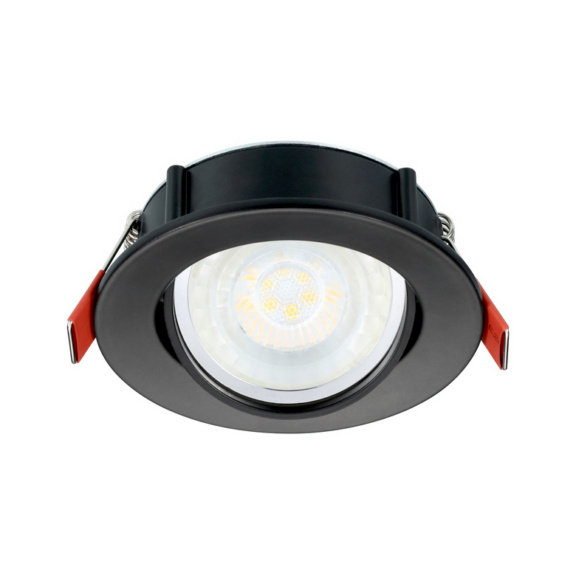

DOWNLIGHT INSET TREND 75 SW BK NO-LMP
SYLVANIA
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | No |
Suitable for built-in mounting | Yes |
Suitable for wall mounting | No |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Not adjustable |
With movement sensor | No |
With light sensor | No |
With light source | No |
Lamp holder | GU10 |
Housing material | Aluminium |
Surface protection | Other |
Housing colour | Other |
Material cover | Without cover |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | Not required |
With control gear | No |
Dimming 0-10 V | No |
Light distributor | None |
Light distribution | Symmetric |
Light outlet | Direct |
Constant light output (CLO) | No |
Impact strength | IK02 |
Protection class according to IEC 61140 | II |
Rated ambient temperature according to IEC 62722-2-1 | -10-40 °C |
Max. system power | 0.1 W |
Luminous flux adjustable | No |

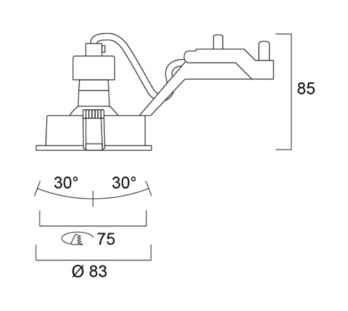

Width | 85 mm |
Height/depth | 85 mm |
Length | 85 mm |
Outer diameter | 83 mm |
Built-in diameter | 75-75 mm |
Type of wiring | Loop-through wiring included |
Number of poles | 2 |
Conductor cross section | 1.5 mm² |
Connection type | Free conductor end |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 30 |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
IFTTT support available | No |
E-number Finland | 4279653 |
