Brand: STEINEL
SKU: WS4145594

- DOWNLIGHT SLC 160-170 3K/4K IP54 ND WT

- DOWNLIGHT SLC 160-170 3K/4K IP54 ND WT - 1

- DOWNLIGHT SLC 160-170 3K/4K IP54 ND WT - 2

- DOWNLIGHT SLC 160-170 3K/4K IP54 ND WT - 3

DOWNLIGHT SLC 160-170 3K/4K IP54 ND WT
STEINEL

Art.-no. WS4145594

EAN 7070938071628

All versions

Similar products

Art.-no. WS4145594

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Suitable for built-in mounting	Yes
Suitable for ceiling mounting	Yes
Adjustability	Not adjustable
Lamp type	LED not exchangeable
Housing material	Aluminium
Surface protection	Powder coating
Housing colour	White
Material cover	Plastic, transparent
Voltage type	DC
Nominal voltage	220-240 V
Type of control gear	LED operating device current-controlled
With control gear	No
Exchangeable control gear	Yes
Dimming DALI-2	Yes
Dimming phase cut-off (trailing edge)	Yes
Dimming phase cut-on (leading edge)	Yes
Reflector	High-gloss
Light distributor	Reflector
Light distribution	Symmetric
Beam angle	Wide beam 41-80°
Light outlet	Direct
Protection class according to IEC 61140	III
Rated ambient temperature according to IEC 62722-2-1	-20-40 °C
Max. system power	13 W
Colour of light	White
Colour temperature	3000-4000 K
Colour rendering index CRI	80-89
Colour of light adjustable	Positions
Luminous flux adjustable	No

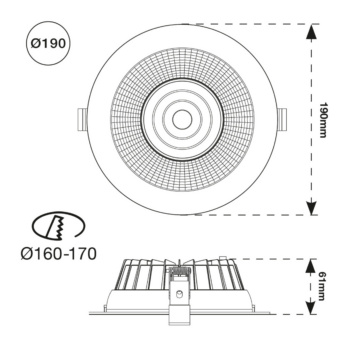

Height/depth	61 mm
Outer diameter	190 mm
Built-in diameter	160-170 mm
Type of wiring	Ending
Number of poles	2
Connection type	Insulation displacement connector
Max. number of luminaires per miniature circuit breaker C16 (MCB)	94
Colour consistency (McAdam ellipse)	SDCM3
Unified Glare Ratio (UGR)	19
E-number Finland	4145594

Additional accessory:

Product

Description

Quantity

Price
/packing unit

FITTING RING SLC 160-210MM WT

Art.-no. WS4145598
