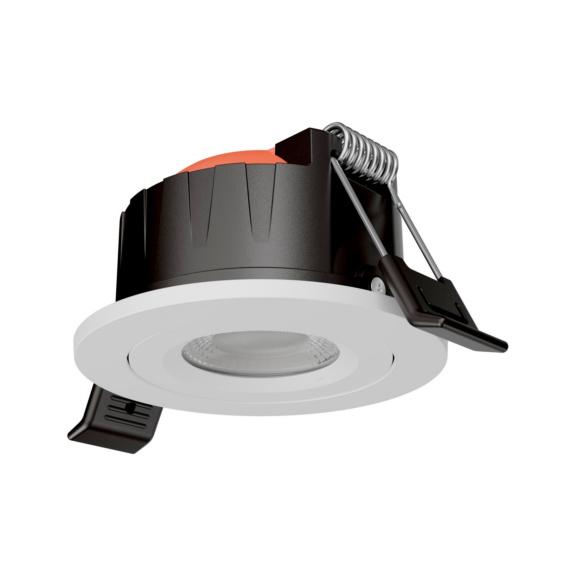

DOWNLIGHT SP CBO ADJ IP65 6W CCT DALI WT
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | Yes |
Suitable for wall mounting | No |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Swivelling |
With movement sensor | No |
With presence detector | No |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Black |
Material cover | Plastic, transparent |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 30-36 mA |
With control gear | Yes |
Dimmable | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | Yes |
Dimming DALI | Yes |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | Yes |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Reflector | None |
Light distributor | Focal lens |
Light distribution | Symmetric |
Reflector colour | Other |
Beam angle | 41-80° - Wide beam |
Light outlet | Direct |
Energy efficiency class of the light source according to EU regulation 2019/2015 | E |
Rated lifetime L70/B50 at 25 °C | 50000 h |
Constant light output (CLO) | No |
Degree of protection (IP), rear side | IP20 |
Degree of protection (IP), front side | IP65 |
Impact strength | IK03 |
Protection class according to IEC 61140 | III |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Max. system power | 6 W |
Emergency power supply system | None |
Emergency function monitoring system | None |
Colour of light | White |
Colour temperature | 2700-4000 K |
Colour of light adjustable | Positions |
Colour rendering index CRI | 90-100 |
Rated luminous flux according to IEC 62722-2- 1 | 400-570 lm |
Luminous flux adjustable | Positions |
Luminaire efficacy | 90-95 lm/W |
Luminous intensity | 530-530 cd |
Power factor | 0.5 |
Beam angle adjustable | No |

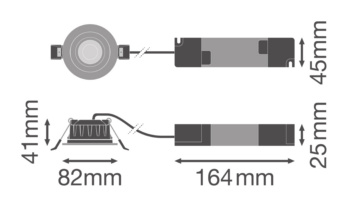

Length | 82 mm |
Width | 82 mm |
Height/depth | 41 mm |
Outer diameter | 82 mm |
Built-in diameter | 68-68 mm |
Type of wiring | Suitable for loop-through wiring |
Number of poles | 4 |
Conductor cross section | 0.75 mm² |
Connectable conductor cross section | 0.75-0.75 mm² |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 64 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 64 |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Photobiological safety according to EN 62471 | RG1 |
Suitable for workplace according to EN 12464-1 | No |
Covering of the luminaire with thermally insulating material possible | Yes |
IFTTT support available | No |
Colour consistency (McAdam ellipse) | SDCM6 |
Compatible with Apple HomeKit | No |
Operation by Bluetooth | No |
Compatible with Google Assistant | No |
Compatible with Casambi | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4161299 |
