Brand: Würth Elektronik Oy
SKU: WS3202000

- EMERG RESI SOCKET FLOOD 16A/230V GW95522

EMERG RESI SOCKET FLOOD 16A/230V GW95522

Art.-no. WS3202000

EAN 8034035127755

All versions

Similar products

Art.-no. WS3202000

Quantity

x 1

Show availability at another Center

Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Locate Center shop
Login/Register
Call customer service: 010 308 4700

Your feedback for this product

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents


Model	Socket outlet CEE 7/3 (type F)
Number of active contacts (round)	2
With signal lamp	No
Number of socket outlets switchable	1
Number of phases	2
Imprint/indication	None
Connection type	Screwed terminal
With hinged lid	No
With enhanced contact protection	No
Label space/information surface	No
Colour	White
RAL-number (similar)	9016
Metallic colour	No
Transparent	No
Lockable	No
Eject-mechanism	No
Insulated mounting	No
With function lighting	No
With orientation lighting	No
Over voltage protection	No
Fault current protection	Yes
With miniature fuse	No
Mounting method	Built-in
Type of fastening	Screw mounting
Material	Plastic
Material quality	Thermoplastic
Halogen free	No
Surface protection	Untreated
Surface finishing	Matt
Anti-bacterial treatment	No
With on/off switch	No
With loop through function	No
Rotated central insert	No
Nominal current	16 A
Nominal voltage	230 V
Frequency	50-60 Hz
Rated fault current	30 mA
Suitable for degree of protection (IP)	IP21

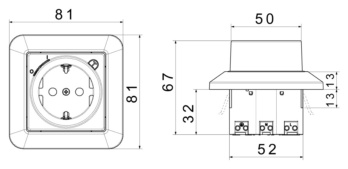

Device width	81.5 mm
Device height	81.5 mm
Device depth	67 mm
Compatible with Apple HomeKit	No
Compatible with Google Assistant	No
Min. depth of built-in installation box	32 mm
Compatible with Amazon Alexa	No
IFTTT support available	No
For heavy conditions according to VDE	No
E-number Finland	3202000
