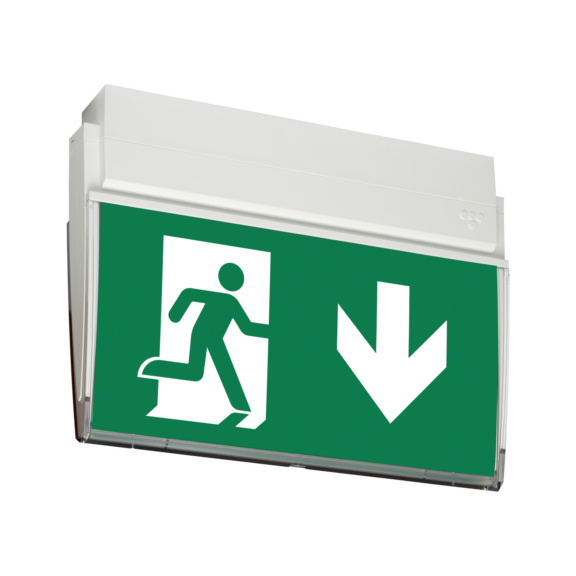

EXIT LIGHT Y9071W120 24-230V 25M R/L/D
Art.-no. WS4282249
EAN 6438045020570
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Function | Escape route signage |
Suitable for labelling type | Sticker |
Type of indicator | Single/double-sided |
With pictogram | Yes |
With remote switch connection | No |
Battery technology | Other |
Lamp type | LED not exchangeable |
With light source | Yes |
Housing material | Plastic |
Housing colour | White |
Voltage type | AC/DC |
Nominal voltage | 24-230 V |
Type of control gear | LED operating device current-controlled |
Degree of protection (IP) | IP43 |
Max. system power | 1.5 W |
Recognition distance | 25 m |

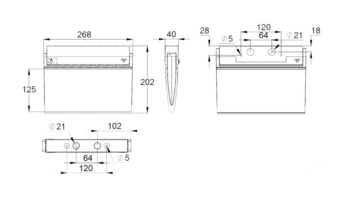

Width | 202 mm |
Height/depth | 40 mm |
Length | 268 mm |
Built-in width | 45 mm |
Built-in length | 275 mm |
Type of wiring | Suitable for loop-through wiring |
Number of poles | 3 |
Conductor cross section | 2.5 mm² |
Connection type | Other |
E-number Finland | 4282249 |
