Floodlight IP 65 Floodlight Compact Sensor
FL COMP 5000lm 50W/840 100D S
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
- 100° x 100° symmetrical beam
- Bent 30° attachment arm and wide adjustability
- 1 m connection cord (H05RN-F), crimped wire ends 3 x 1.0 mm²
- Outdoor use (IP65)
- Public areas, building facades, gardens, balconies and other outdoor areas, worksites
- Very even lighting due to the hardened matte glass
- Orientable motion and darkness sensor
- Observation area of the sensor: horizontal 350° and vertical 180°
- The sensor sensitivity, daylight sensor level and release delay are easy to adjust
- Constantly on function can be activated with a normal light switch
Datasheets(X)
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | Yes |
Suitable for light-track mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Swivelling |
With movement sensor | Yes |
With light sensor | Yes |
Lamp type | LED not exchangeable |
With light source | Yes |
Lamp holder | None |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Black |
Material cover | Glass opal |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
LED nominal current at constant current | 245-245 mA |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | No |
Dimming depending on control gear | No |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming GPRS | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Reflector | Matt |
Light distributor | Reflector |
Light sharing | Symmetric |
Beam angle | Extreme wide beam >80° |
Light outlet | Direct |
Total harmonic distortion | 20 |
Rated life time L70/B50 at 25 °C | 50000 h |
Rated life time L80/B10 at 25 °C | 35000 h |
Constant light output (CLO) | No |
Degree of protection (IP) | IP65 |
Impact strength | IK06 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -30-45 °C |
Max. system power | 20 W |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 80-89 |
Luminous flux | 5000-5000 lm |
Rated luminous flux according to IEC 62722-2-1 | 5000 lm |
Power factor | 0.9 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

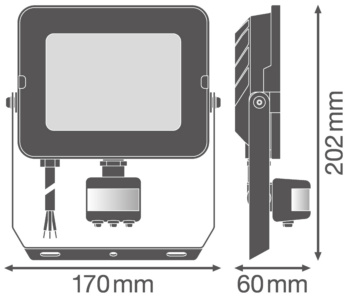

Width | 170 mm |
Height/depth | 60 mm |
Length | 1000 mm |
Type of wiring | Ending |
Number of poles | 3 |
Connection type | Push-in clamp |
Emergency power supply integrated | No |
Luminaire efficacy | 100 |
Photobiological safety according to EN 62471 | RG1 |
Suitable for workplace according to EN 12464-1 | No |
Covering of the luminaire with thermally insulating material possible | No |
IFTTT support available | Yes |
Colour consistency (McAdam ellipse) | SDCM5 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4529794 |
Brand | LEDVANCE |
