Floodlight Floodlight PFM Flex asymmetric
LED floodlight ON/ OFF, IP66, 45x140D
FL FLEX 40W/840 ML 45X140D
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
FLOODLIGHT FLEX is a C5 corrosion-resistant floodlight (1500h salt mist spray test). The luminaire's design and replaceable LED driver increase service life and reliability. Versatile luminous flux and beam angle options, three cable entries and a built-in breather membrane ensure flexible and reliable use. The intelligent drainage design prevents standing water, and no upper light output ratio (ULOR 0%) when mounted at 0° tilt. Easy installation with simple angle adjustment by locking every 2.5°.
Suitable for ports, parking lots, exterior areas, sports facilities, architectural lighting and industry.
Technical features:
- Luminous efficacy up to 161 lm/W
- Multi Lumen: 4-Step power select
- Option for through wiring in series
- Surge protection up to 10 kV (L/N-PE), 6 kV (L-N)
- Long service life, up to 120 000 h (L70/B50, 25 °C)
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | Yes |
Suitable for pedestal/floor mounting | Yes |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Swivelling |
With movement sensor | No |
With light sensor | No |
With light source | Yes |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | White |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | Electronic ballast |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | Yes |
Light distributor | Focal lens |
Light sharing | Asymmetric |
Light outlet | Direct |
Rated life time L70/B50 at 25 °C | 120000 h |
Constant light output (CLO) | No |
Degree of protection (IP) | IP66 |
Impact strength | IK08 |
Protection class | I |
Rated ambient temperature according to IEC 62722-2-1 | -30-50 °C |
Max. system power | 40 W |
Colour of light | White |
Colour temperature | 4000-4000 K |
Colour rendering index CRI | 80-89 |
Luminous flux | 6100-6100 lm |
Rated luminous flux according to IEC 62722-2-1 | 6100 lm |
Luminous intensity | 3777 cd |
Power factor | 0.9 |
Colour of light adjustable | No |
Luminous flux adjustable | Positions |
Beam angle adjustable | No |

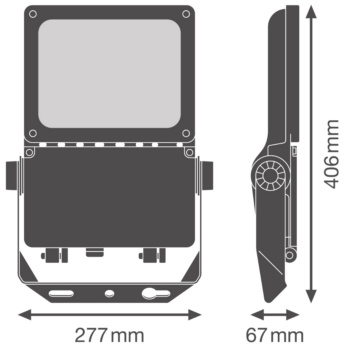

Width | 277 mm |
Height/depth | 67 mm |
Length | 406 mm |
Number of poles | 3 |
Conductor cross section | 1.5 mm² |
Connection type | Push-in clamp |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 12 |
Emergency power supply integrated | No |
Luminaire efficacy | 153 lm/W |
Photobiological safety according to EN 62471 | RG1 |
Suitable for workplace according to EN 12464-1 | No |
Covering of the luminaire with thermally insulating material possible | No |
IFTTT support available | Yes |
Colour consistency (McAdam ellipse) | SDCM5 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4532008 |
Brand | LEDVANCE |
