FLOODL. SPIDER+ 20 65 S/W 830 BK81
GEWISS
Art.-no. WS4549885
EAN 8018367733723
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Rotating and swivelling |
With movement sensor | No |
With light sensor | No |
Lamp type | LED exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | None |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Black |
Material cover | Glass transparent |
Surface brushed | No |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Reflector | High-gloss |
Light distributor | Reflector |
Light distribution | Symmetric |
Beam angle | Wide beam 41-80° |
Light outlet | Direct |
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 83.2 % |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 77.6 % |
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 91.3 % |
Constant light output (CLO) | No |
Degree of protection (NEMA) | 4 |
Impact strength | IK05 |
Protection class according to IEC 61140 | I |
Rated ambient temperature according to IEC 62722-2-1 | -20-30 °C |
Suitable for lamp power | 51-51 W |
Max. system power | 51 W |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.9 |
Colour of light adjustable | No |
Luminous flux adjustable | No |
Beam angle adjustable | No |

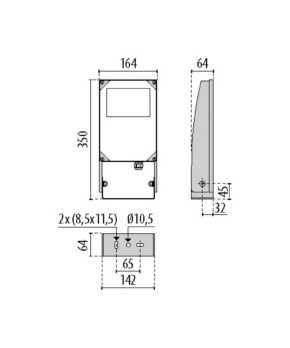

Width | 350 mm |
Height/depth | 64 mm |
Length | 164 mm |
Type of wiring | Ending |
Number of poles | 3 |
Conductor cross section | 1 mm² |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 27 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 43 |
Filament test according to IEC 60695-2-11 | 960 °C - 30 s |
Photobiological safety according to EN 62471 | RG1 |
Covering of the luminaire with thermally insulating material possible | No |
IFTTT support available | No |
Colour consistency (McAdam ellipse) | SDCM3 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4549885 |
