Suitable for surface mounting

Yes

Suitable for built-in mounting

No

Suitable for wall mounting

Yes

Suitable for suspended mounting

No

Suitable for ceiling mounting

No

Suitable for traverse mounting

Yes

Suitable for pedestal/floor mounting

Yes

Suitable for light-track mounting

No

Suitable for clamp-mounting

No

Suitable for low voltage cable system

No

Adjustability

Swivelling

With movement sensor

No

With light sensor

No

Lamp type

LED not exchangeable

With light source

Yes

Suitable for number of light sources

0

Lamp holder

None

Housing material

Aluminium

Surface protection

Powder coating

Housing colour

Black

Surface brushed

No

Voltage type

DC

Nominal voltage

3-5 V

With control gear

No

Exchangeable control gear

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming phase cut-off

No

Dimming phase cut-on

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

No dim function

No

Reflector

Matt

Light distributor

Reflector

Light sharing

Symmetric

Light outlet

Direct

Rated life time L70/B50 at 25 °C

100000 h

Constant light output (CLO)

No

Degree of protection (IP)

IP66

Impact strength

IK10

Protection class

I

Rated ambient temperature according to IEC 62722-2-1

-40-50 °C

Max. system power

280 W

Colour of light

White

Colour temperature

3000-3000 K

Colour rendering index CRI

70-79

Luminous flux

39600-39600 lm

Rated luminous flux according to IEC 62722-2-1

39600 lm

Luminous intensity

23000 cd

Power factor

0.9

Colour of light adjustable

No

Luminous flux adjustable

No

Beam angle adjustable

No

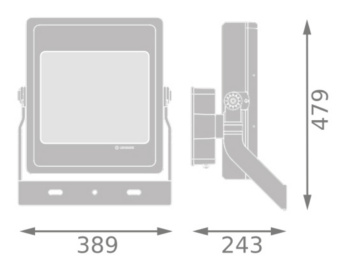

Width

389 mm

Height/depth

243 mm

Length

479 mm

Type of wiring

Ending

Number of poles

3

Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24

No

Max. number of luminaires per miniature circuit breaker B16 (MCB)

4

Max. number of luminaires per miniature circuit breaker C16 (MCB)

7

Emergency power supply integrated

No

Luminaire efficacy

132 lm/W

Photobiological safety according to EN 62471

RG1

Suitable for workplace according to EN 12464-1

No

Covering of the luminaire with thermally insulating material possible

No

IFTTT support available

Yes

Colour consistency (McAdam ellipse)

SDCM5

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

E-number Finland

4529980

Brand

LEDVANCE
