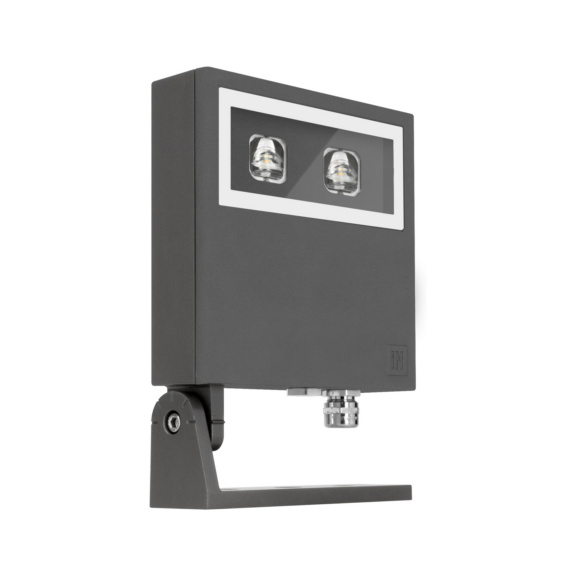

FLOODLIGHT FOCUS+ 1 18W A55/W 3K AN DALI
GEWISS
Art.-no. WS4537125
EAN 8018367650310
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | Yes |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | Yes |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Rotatable |
With movement sensor | No |
With light sensor | No |
Lamp type | LED not exchangeable |
With light source | Yes |
Suitable for number of light sources | 1 |
Lamp holder | Other |
Housing material | Aluminium |
Surface protection | Powder coating |
Housing colour | Anthracite |
Material cover | Glass transparent |
Surface brushed | No |
Nominal voltage | 220-240 V |
With control gear | Yes |
Exchangeable control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI-2 | No |
Dimming DALI | Yes |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Reflector | None |
Light distributor | Diffuser lens/optic/panel |
Light distribution | Asymmetric |
Beam angle | Wide beam 41-80° |
Light outlet | Direct |
Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 92.7 % |
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 89.1 % |
Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 78.2 % |
Constant light output (CLO) | No |
Impact strength | IK06 |
Protection class according to IEC 61140 | I |
Rated ambient temperature according to IEC 62722-2-1 | -25-35 °C |
Suitable for lamp power | 18-18 W |
Max. system power | 18 W |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 70-79 |
Colour of light adjustable | No |
Luminous flux adjustable | Continuously variable |
Beam angle adjustable | No |

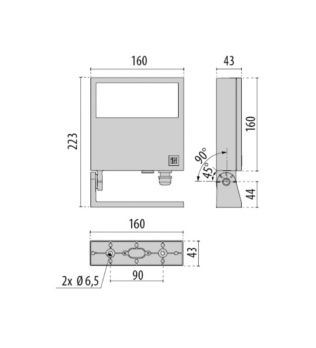

Width | 160 mm |
Height/depth | 43 mm |
Length | 223 mm |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 50 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 85 |
IFTTT support available | No |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4537125 |
