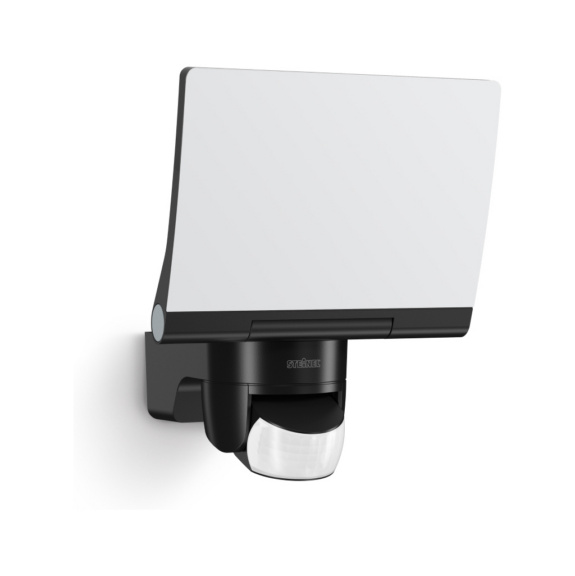

FLOODLIGHT XLED HOME 2 XL S 19,3W 3K BK
STEINEL
Art.-no. WS4525161
EAN 4007841030049
With registration you can access the Würth Elektro online shop selection.
Datasheets(X)
 | |
Suitable for surface mounting | Yes |
Suitable for built-in mounting | No |
Suitable for wall mounting | Yes |
Suitable for suspended mounting | No |
Suitable for ceiling mounting | No |
Suitable for traverse mounting | No |
Suitable for pedestal/floor mounting | No |
Suitable for light-track mounting | No |
Suitable for clamp-mounting | No |
Suitable for low voltage cable system | No |
Adjustability | Rotating and swivelling |
With movement sensor | Yes |
With light sensor | Yes |
Lamp type | LED not exchangeable |
With light source | Yes |
Lamp holder | Other |
Housing material | Plastic |
Material cover | Plastic, opal |
Voltage type | AC |
Nominal voltage | 220-240 V |
Type of control gear | LED operating device current-controlled |
With control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | No |
Dimming DMX | No |
Dimming DSI | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming phase cut-off (trailing edge) | No |
Dimming phase cut-on (leading edge) | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
Reflector | None |
Light distributor | None |
Light distribution | Symmetric |
Beam angle | Extreme wide beam >80° |
Light outlet | Direct |
Protection class according to IEC 61140 | II |
Rated ambient temperature according to IEC 62722-2-1 | -20-40 °C |
Suitable for lamp power | 19.3-19.3 W |
Max. system power | 19.3 W |
Colour of light | White |
Colour temperature | 3000-3000 K |
Colour rendering index CRI | 80-89 |
Power factor | 0.88 |

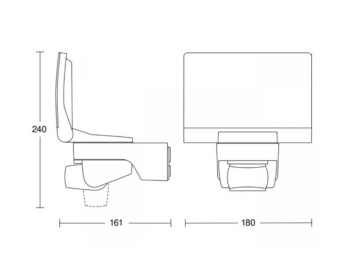

Width | 180 mm |
Height/depth | 240 mm |
Length | 161 mm |
Type of wiring | Suitable for through wiring |
Number of poles | 2 |
Connectable conductor cross section | 0.5-0.5 mm² |
Connection type | Other |
Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24 | No |
Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
Photobiological safety according to EN 62471 | Other |
Suitable for workplace according to EN 12464-1 | No |
Covering of the luminaire with thermally insulating material possible | No |
Colour consistency (McAdam ellipse) | SDCM3 |
Compatible with Apple HomeKit | No |
Compatible with Google Assistant | No |
Compatible with Amazon Alexa | No |
E-number Finland | 4525161 |
