Press-in screw WEFH
FLUSH HEAD STUD WEFH ZP M6X40
With registration you can access the Würth Elektro online shop selection.
Shaping press-in screw WEFH is an externally threaded fastening element mounted in thin plates with compression.
The thread and serration in the press-in screw’s head shape the thin plate material,
ensuring a durable hold.
• Easy compression installation.
• High torque tolerance.
• Neat connection.
• Even opposite connection end.

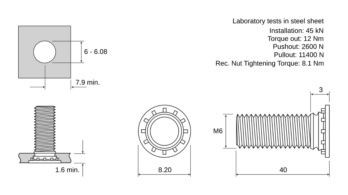

Datasheets(X)
![]() | |
Thread type x nominal diameter | M6 |
Length | 40.0 mm |
Min. plate thickness | 1.6 mm |
Nominal diameter | 6 mm |
Thread type | Metric thread |
Material | Steel |
Surface | Zinc plated |
