Press-in screw WEFHS
FLUSH HEAD STUD WEFHS A2 M3X8
With registration you can access the Würth Elektro online shop selection.
Shaping press-in screw WEFHS is an externally threaded fastening element mounted in thin plates with compression.
The thread and serration in the press-in screw’s head shape the thin plate material,
ensuring a durable hold.
• Easy compression installation.
• High torque tolerance.
• Neat connection.
• Even opposite connection end.
Datasheets(X)
 | |

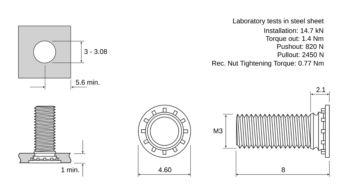

Thread type x nominal diameter | M3 |
Length | 8 mm |
Min. plate thickness | 1 mm |
Nominal diameter | 3 mm |
Thread type | Metric thread |
Material | Stainless steel A2 |
Surface | Uncoated |
