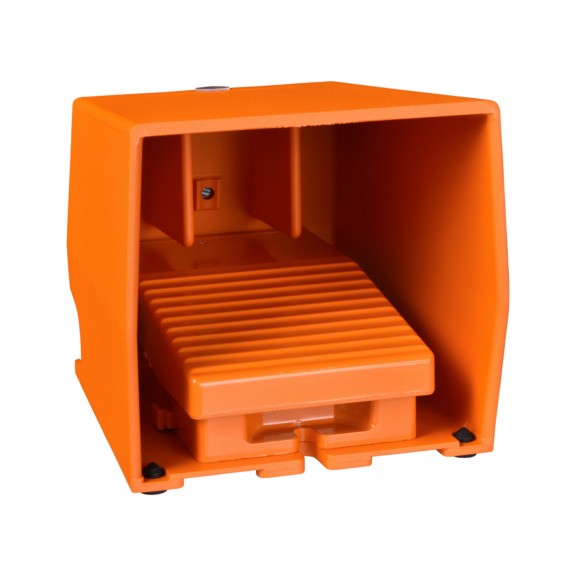

Foot switch XPE Harmony
FOOT SWITCH XPER410 PREVENTA
SCHNEIDER ELECTRIC
Art.-no. WS2363024
EAN 3389110470932
With registration you can access the Würth Elektro online shop selection.
The foot switch is suitable for safety use. The switch has two positions; on and off.
Datasheets(X)
 | |
Type of command | On or off |
With protection hood | Yes |
With interlocking | No |
Material | Metal |
With protective insulation | No |
Colour | Orange |
Number of switch positions | 1 |
Number of contacts as normally closed contact | 2 |
Number of contacts as normally open contact | 2 |
Switching function latching | No |
Suitable for safety functions | Yes |
Rated operation current Ie at AC-15, 230 V | 3 A |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | Other |
Width | 160 mm |
Height | 135 mm |
Depth | 186 mm |
E-number Finland | 2363024 |
Brand | SCHNEIDER ELECTRIC |
