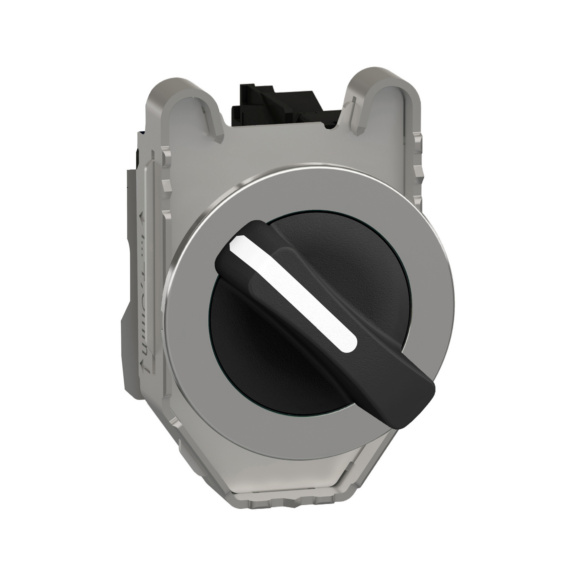

Switch knob Harmony XB4
HANDLE 2-POS XB4FD41 HARMONY
SCHNEIDER ELECTRIC
With registration you can access the Würth Elektro online shop selection.
Harmony turn switches
- Switches available with or without spring return
- 2 or 3 positions
- Contact elements with different NO/NC contacts
- Protective rating up to IP66, IP69K
Datasheets(X)
 | |
Number of switch positions | 2 |
Type of control element | Other |
Suitable for lighting | No |
With light source | No |
Colour button | Black |

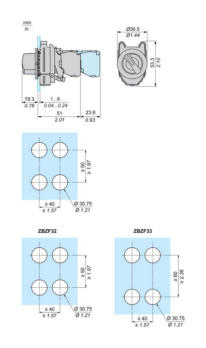

Hole diameter | 30.5 mm |
Switching function latching | No |
Spring-return | Yes |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | 13 |
Number of contacts as normally open contact | 1 |
Type of electric connection | Screw connection |
With front ring | Yes |
Material front ring | Metal |
Colour front ring | Chrome |
E-number Finland | 2321369 |
Brand | SCHNEIDER ELECTRIC |
