Max. system power

240 W

Suitable for auxiliary lamp

No

Housing material

Aluminium

Housing colour

White

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

540-1100 mA

Exchangeable control gear

No

With control gear

Yes

Dimming 0-10 V

Yes

Dimming 1-10 V

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Focal lens

Light distribution

Symmetric

Reflector

None

With light source

Yes

Beam angle

41-80° - Wide beam

Colour consistency (McAdam ellipse)

SDCM3

Rated lifetime L70/B50 at 25 °C

102000 h

Degree of protection (IP)

IP66

Impact strength

IK10

Protection class according to IEC 61140

I

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

Yes

Rated ambient temperature according to IEC 62722-2-1

-30-50 °C

Suitable for emergency lighting

Yes

Filament test according to IEC 60695-2-11

850 °C - 30 s

Colour of light

White

Colour temperature

4000-4000 K

Colour rendering index CRI

80-89

Power factor

0.95

Constant light output (CLO)

No

Colour of light adjustable

No

Beam angle adjustable

No

Luminous flux adjustable

Positions

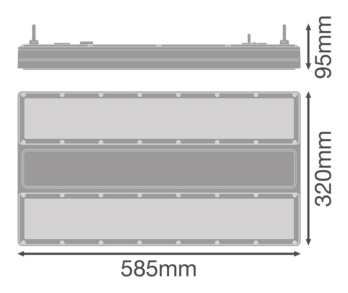

Width

320 mm

Height/depth

95 mm

Length

585 mm

Type of wiring

Ending

Number of poles

2

Conductor cross section

1 mm²

Connection type

Other

With protective cover

No

Max. number of luminaires per miniature circuit breaker B16 (MCB)

10

Max. number of luminaires per miniature circuit breaker C16 (MCB)

12

E-number Finland

4325423

Brand

LEDVANCE
