LEDVANCE

HIGH BAY HB COMP 120W 110D IP65
LEDVANCE

Art.-no. WS4325474

EAN 4099854743825

-

Art.-no. WS4325474

-
Quantity
PU
x 1

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Suitable for ceiling mounting

Yes

Suitable for wall mounting

Yes

Suitable for suspended mounting

Yes

Lamp type

LED not exchangeable

With light source

Yes

Suitable for auxiliary lamp

No

Housing material

Aluminium

Housing colour

Black

Voltage type

AC

Nominal voltage

220-240 V

Nominal current

530-530 mA

Exchangeable control gear

No

With control gear

Yes

With movement sensor

No

With presence detector

No

With light sensor

No

Dimmable

No

Dimming 0-10 V

No

Dimming 1-10 V

No

Dimming DALI-2

No

Dimming DALI

No

Dimming DMX

No

Dimming DSI

No

Dimming phase cut-off (trailing edge)

No

Dimming phase cut-on (leading edge)

No

Dimming potentiometer (integrated)

No

Dimming LineSwitch

No

Dimming manufacturer's proprietary system

No

Dimming mains voltage modulation

No

Dimming programmable

No

Dimming RF

No

Dimming Sine Wave Reduction

No

Dimming Touch and Dim

No

Dimming Zigbee

No

Dimming with push-button

No

Light distributor

Diffuser lens/optic/panel

Light distribution

Symmetric

Reflector

None

Energy efficiency class of the light source according to EU regulation 2019/2015

D

Beam angle

> 80° - Extreme wide beam

Colour consistency (McAdam ellipse)

SDCM5

Rated lifetime L70/B50 at 25 °C

100000 h

Degree of protection (IP)

IP65

Impact strength

IK06

Protection class according to IEC 61140

I

Luminaire with limited surface temperature, sign "D" according to EN 60598-2-24

No

Emergency power supply system

None

Rated ambient temperature according to IEC 62722-2-1

-20-50 °C

Emergency function monitoring system

None

Suitable for emergency lighting

No

Filament test according to IEC 60695-2-11

850 °C - 30 s

Max. system power

120 W

Luminaire efficacy

150-165 lm/W

Rated luminous flux according to IEC 62722-2- 1

9000-19200 lm

Colour of light

White

Colour temperature

4000-6500 K

Colour rendering index CRI

80-89

Photobiological safety according to EN 62471

RG1

Power factor

0.9

Constant light output (CLO)

No

Colour of light adjustable

Positions

Beam angle adjustable

No

Luminous flux adjustable

Positions

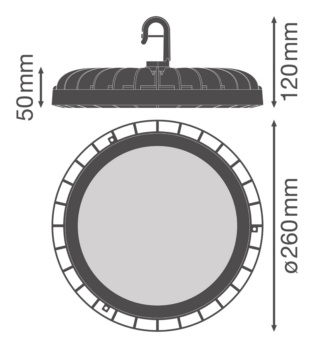

Height/depth

50 mm

Length

260 mm

Outer diameter

260 mm

Type of wiring

Ending

Number of poles

3

Conductor cross section

1 mm²

Connection type

Other

Connectable conductor cross section

1-1 mm²

With protective cover

Yes

Operation by Bluetooth

No

Max. number of luminaires per miniature circuit breaker B16 (MCB)

13

Max. number of luminaires per miniature circuit breaker C16 (MCB)

16

Meets min. EIA lifetime criterion L90 (at 50,000 hours at tq = 25 °C)

No

E-number Finland

4325474

Brand

LEDVANCE

Additional accessory:

Product
Description
Quantity
PU
Price
/packing unit

REFLECTOR HB COMP 120W 2PCS

LEDVANCE
x 1

REFLECTOR HB COMP 220W 2PCS

LEDVANCE
x 1

BRACKET HB COMP 120W

LEDVANCE

BRACKET HB COMP 220W

LEDVANCE
