High bay luminaire High Bay PFM Gen 5
LED, DALI-2, IP66, IK10
HIGH BAY HB DALI 75W/840 110D IP66
LEDVANCE
With registration you can access the Würth Elektro online shop selection.
The HIGH BAY PERFORMANCE series LED high-bay luminaires offer excellent energy efficiency and long lifespan for lighting high ceiling spaces. Thanks to DALI-2 certification, they integrate seamlessly with smart lighting control systems, optimizing lighting management and energy consumption.
Key benefits:
- High luminous efficacy – energy savings of up to 70 % compared to conventional high bay luminaires
- Improved anti-glare (UGR ≤ 19) – More comfortable lighting, especially with a 70° reflector
- Compact and lightweight design – Easier installation and handling
- Versatile accessories – A customizable lighting solution to suit your needs
- Ready for quick installation – 1.5 meter connection cable with pre-stripped ends included
Ideal applications:
- Warehouses and logistic halls
- Industrial premises
- Large lobbies, shopping malls and airports
- As a replacement for traditional mercury vapor and metal halide lamps
Datasheets(X)
 | |
Max. system power | 75 W |
Suitable for auxiliary lamp | No |
Lamp holder | None |
Housing material | Aluminium |
Housing colour | Black |
Voltage type | AC |
Nominal voltage | 220-240 V |
Nominal current | 335-335 mA |
Type of control gear | Electronic ballast |
Exchangeable control gear | No |
With control gear | Yes |
Dimming 0-10 V | No |
Dimming 1-10 V | No |
Dimming DALI | Yes |
Dimming DMX | No |
Dimming DSI | No |
Dimming phase cut-off | No |
Dimming phase cut-on | No |
Dimming potentiometer (integrated) | No |
Dimming LineSwitch | No |
Dimming manufacturer's proprietary system | No |
Dimming mains voltage modulation | No |
Dimming programmable | No |
Dimming RF | No |
Dimming Sine Wave Reduction | No |
Dimming Touch and Dim | No |
Dimming Zigbee | No |
Dimming with push-button | No |
No dim function | No |
Light distributor | None |
Light sharing | Symmetric |
Reflector | None |
With light source | Yes |
Colour consistency (McAdam ellipse) | SDCM4 |
Rated life time L70/B50 at 25 °C | 120000 h |
Degree of protection (IP) | IP66 |
Degree of protection (NEMA) | Other |
Impact strength | IK10 |
Ball-proof | No |
Protection class | I |
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | Yes |
Rated ambient temperature according to IEC 62722-2-1 | -30-50 °C |
Emergency power supply integrated | No |
Suitable for emergency lighting | No |
Lamp type | LED not exchangeable |
Rated luminous flux according to IEC 62722-2-1 | 13500 lm |
Luminaire efficacy | 180 lm/W |
Colour of light | White |
Colour temperature | 4000-4000 K |
Suitable for number of light sources | 0 |
Colour rendering index CRI | 80-89 |
Power factor | 0.95 |
Constant light output (CLO) | No |
Colour of light adjustable | No |
Beam angle adjustable | No |
Luminous flux adjustable | No |

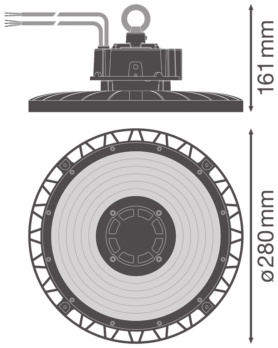

Height/depth | 161 mm |
Length | 280 mm |
Outer diameter | 280 mm |
Type of wiring | Ending |
Number of poles | 3 |
Conductor cross section | 1 mm² |
Connection type | Other |
With protective cover | Yes |
Max. number of luminaires per miniature circuit breaker B16 (MCB) | 15 |
Max. number of luminaires per miniature circuit breaker C16 (MCB) | 19 |
E-number Finland | 4325336 |
Brand | LEDVANCE |
