Hybrid cable CAT6 U/UTP+4xSMT Dca

HYBRID CABLE U/UTP 1XCAT6 4XSMT DCA

Art.-no. WS0207804
EAN 6410002078046

-
Hybrid cable CAT6 U/UTP+4xSMT Dca

Art.-no. WS0207804

-
Quantity
PU
x 500

Show availability at another Center
Exclusively for trade customers

With registration you can access the Würth Elektro online shop selection.

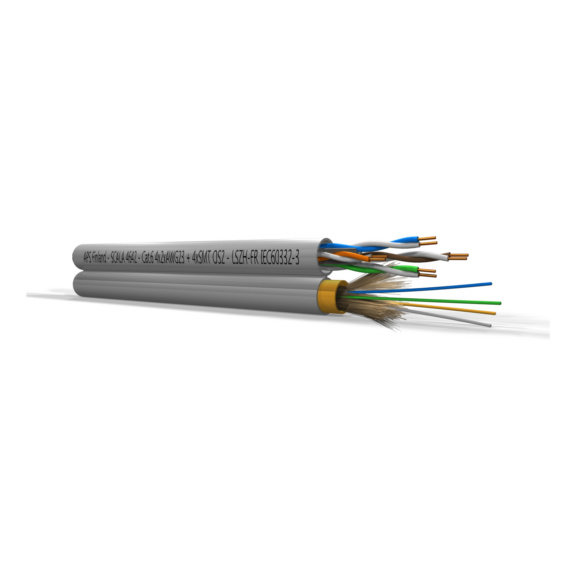

The hybrid cable is used in residential cabling for riser cabling between the apartment and building switchboard / sub-switchboard and the apartment switchboard. A Cat6 U/UTP twin cable and a 4-core OS2 fibre optic cable are combined in the cable’s dual structure.


The hybrid cable is in bundle, self-extinguishing, generates little smoke and is halogen-free (IEC-60332-3). Its fire class is Dca

Product information

Würth Elektronik Oy Catalogue

Datasheets(X)

Certificates/ Documents

 |

 |

Conductor material

Copper

Conductor surface

Bare

Diameter conductor

0.5 mm

AWG size

23

Conductor category

Class 1 = solid

Number of cores

8

Stranding element

Pairs

Material core insulation

Other

Specification core insulation

Polyethylene (PE)

Core identification

Colour

Screen over stranding element

None

Screen over stranding

None

Longitudinal water blocking cable

No

Radial water blocking cable

No

Suitable for underground installation

No

Approved type of underground installation

Other

Protective sheath

None

Material outer sheath

Other

Specification material outer sheath

Other

Colour outer sheath

Grey

Armouring/reinforcement

None

Cable geometry

Other

Reaction-to-fire according to EN 13501-6: Class

Dca

Reaction-to-fire according to EN 13501-6: Smoke production

s2

Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

d2

Reaction-to-fire according to EN 13501-6: Acidity

a1

Halogen free according to EN IEC 60754-2

Yes

Low smoke according to EN IEC 61034-2

Yes

Oil resistant (acc. IEC 60811-404)

No

Outer diameter approx.

13.5 mm

Min. permitted bending radius, stationary application/permanent installation

120 mm

Permitted cable outer temperature during assembling/handling

0-50 °C

Permitted cable outer temperature after assembling without vibration

-20-60 °C

Category

6

NVP value

69 %

UV resistant

No

Certified for shipboard application

No

Suitable as telephone cable

Yes

Suitable as computer data cable

Yes

Suitable as signalling cable

No

Weight

76 kg/km

E-number Finland

0207804
