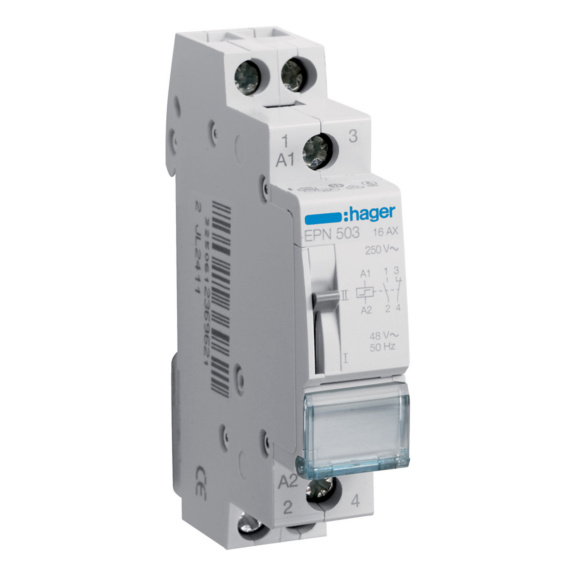

Impulse relay Hager
IGNITION R. 48VAC/24VDC EPN503
UTU
Art.-no. WS2707324
EAN 3250612369621
With registration you can access the Würth Elektro online shop selection.
The impulse relay is designed for impulse control in accordance with EN60669-1 and EN60669-2-2 standards. The module is touch-protected according to BGVA2 requirements, ensuring safe operation. The relay features a contact status indicator, an option for manual operation directly on the device, and a marking window for improved clarity.
The relay can be retrofitted with additional modules, including auxiliary contacts, clock functions, and group control, allowing flexible and expandable system configurations.
Datasheets(X)
Function | Mechanical switch |
Width in number of modular spacings | 17.5 |
Built-in depth | 63 mm |
Number of contacts as normally open contact | 1 |
Number of contacts as normally closed contact | 1 |
Control voltage 1 | 48-48 V |
Type of control voltage 1 | AC |
Frequency control voltage 1 | 50-60 Hz |
Control voltage 2 | 24-24 V |
Type of control voltage 2 | DC |
Frequency control voltage 2 | 50-60 Hz |
Rated switch current | 16 A |
Supply voltage | 250-250 V |
Voltage type (supply voltage) | AC |
Max. incandescent lamp load | 1800 W |
Max. load fluorescent lamp | 800 VA |
Max. load fluorescent lamp (Duo circuit) | 1600 VA |
Max. load fluorescent lamp (parallel compensated) | 900 VA |
Max. switching current (cos phi = 0.6) | 16 A |
Suitable for manual operation | Yes |
E-number Finland | 2707324 |
Brand | UTU |
