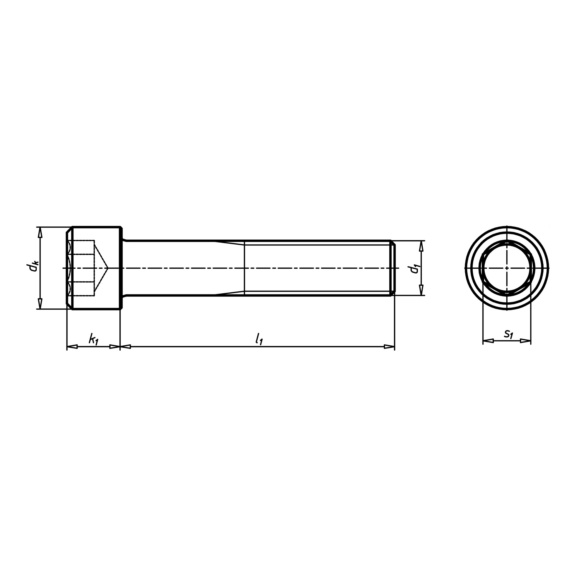

Hexalobular screw, cylindrical head
ISO 4762/DIN 912 BRS M6X20
Art.-no. 51211620
EAN 6438548141055
-
Show availability at another Center
In order to check the stock in a Würth Elektro branch, please log in.
If you have any questions, please call our service hotline at +358 10 308 4700.
Do you want to register as an Online Shop user? Please go to the registration page.
Exclusively for trade customers
With registration you can access the Würth Elektro online shop selection.
ISO 4762 / DIN 912, BRS
Notice
ISO 4762 replaces DIN 912 | There is some similarity | Nominal dimension ranges changed | Fine thread moved to standard ISO 12474.
Product information
Datasheets(X)
 | |
Thread type x nominal diameter (d) | M6 |
Length (l) | 20 mm |
Head diameter (d) | 10 mm |
Head height (k) | 6 mm |
Standards | ISO 4762 |
Material | Brass |
Head type | Socket head |
Drive type | Hexagon socket |
Thread type | Metric thread |
Pitch | 1 mm |
Thread form | Standard metric thread |
Product class | A |
Notice | ISO 4762 replaces DIN 912 | There is some similarity | Nominal dimension ranges changed | Fine thread moved to standard ISO 12474. |
