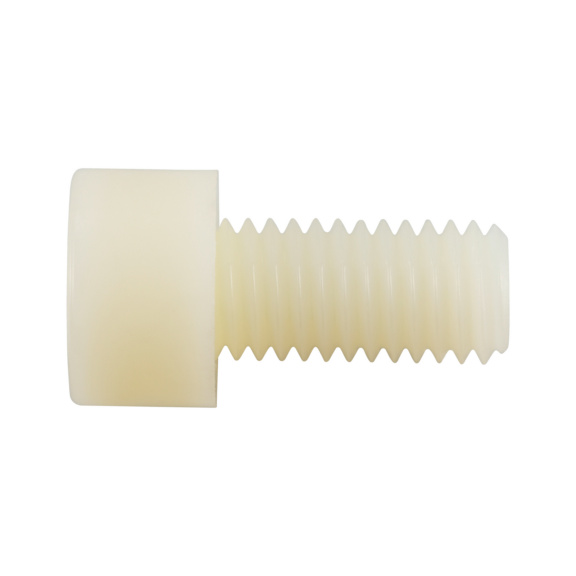

Hexagon socket screw, cylinder head
ISO 4762/DIN 912 PA M6X16 NA
Art.-no. WM9902061
EAN 6438190795101
With registration you can access the Würth Elektro online shop selection.
ISO 4762 replaces DIN 912 | There is some similarity | Nominal dimension ranges changed | Fine thread moved to standard ISO 12474.
Datasheets(X)
 | |
Thread type x nominal diameter (d) | M6 |
Length (l) | 16 mm |
Head diameter (d) | 10 mm |
Head height (k) | 6 mm |
Standards | ISO 4762 |
Material | PA 6.6 - Polyamide |
Head type | Socket head |
Internal drive (s) | HS5 |
Thread type | Metric thread |
Thread form | Standard metric thread |
Notice | ISO 4762 replaces DIN 912 | There is some similarity | Nominal dimension ranges changed | Fine thread moved to standard ISO 12474. |
